Radiator Cooling Fan Control Module
>>
Locations
>>
Connector Locations
Connector Locations
Junction Block And Wire Harness Connector:
JUNCTION BLOCK AND WIRE HARNESS CONNECTOR

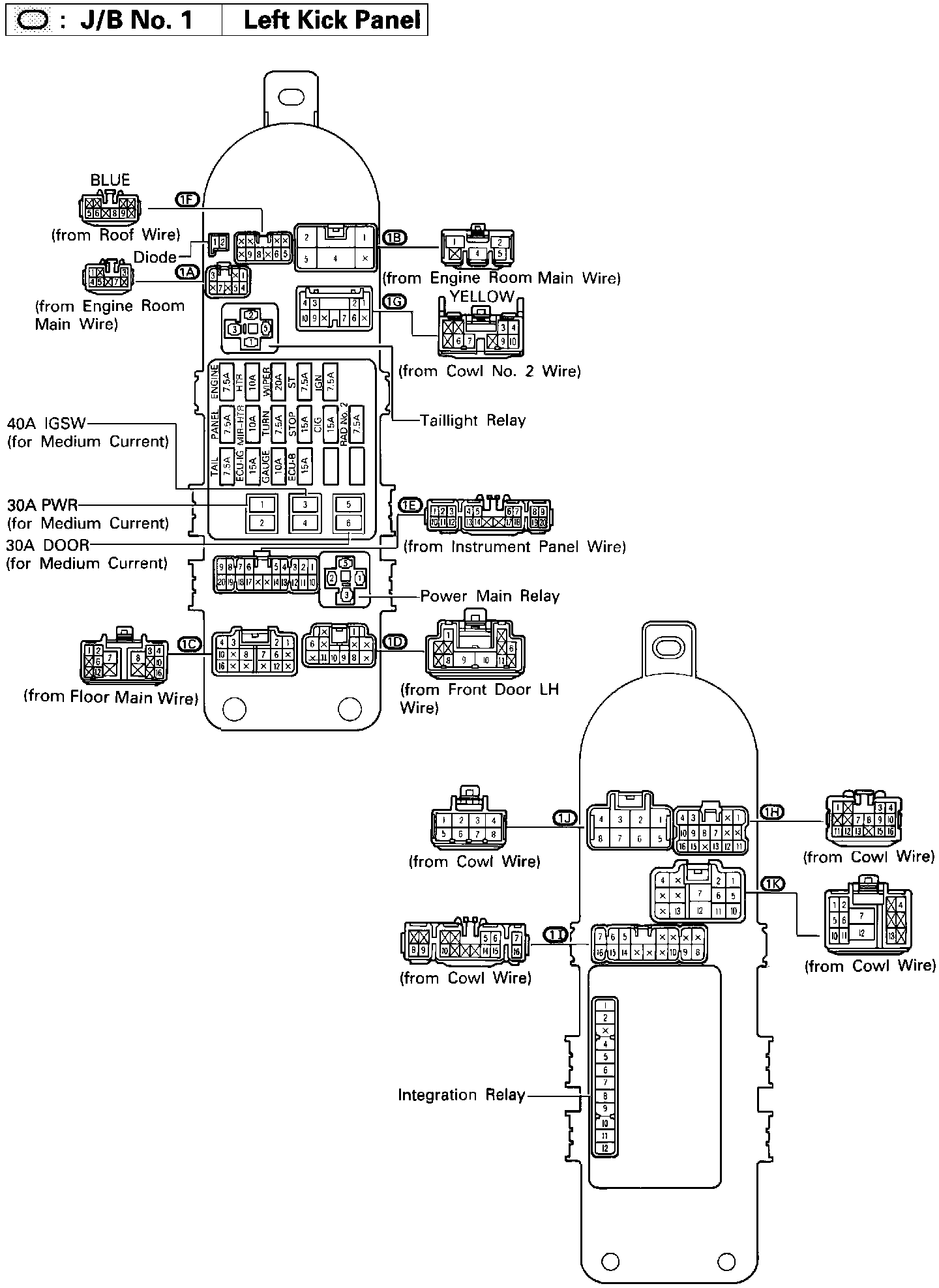

J/B No.1 Left Kick Panel (Fig 20):
FIG 20
