Code 64: Solenoid Valve No. 3 Signal

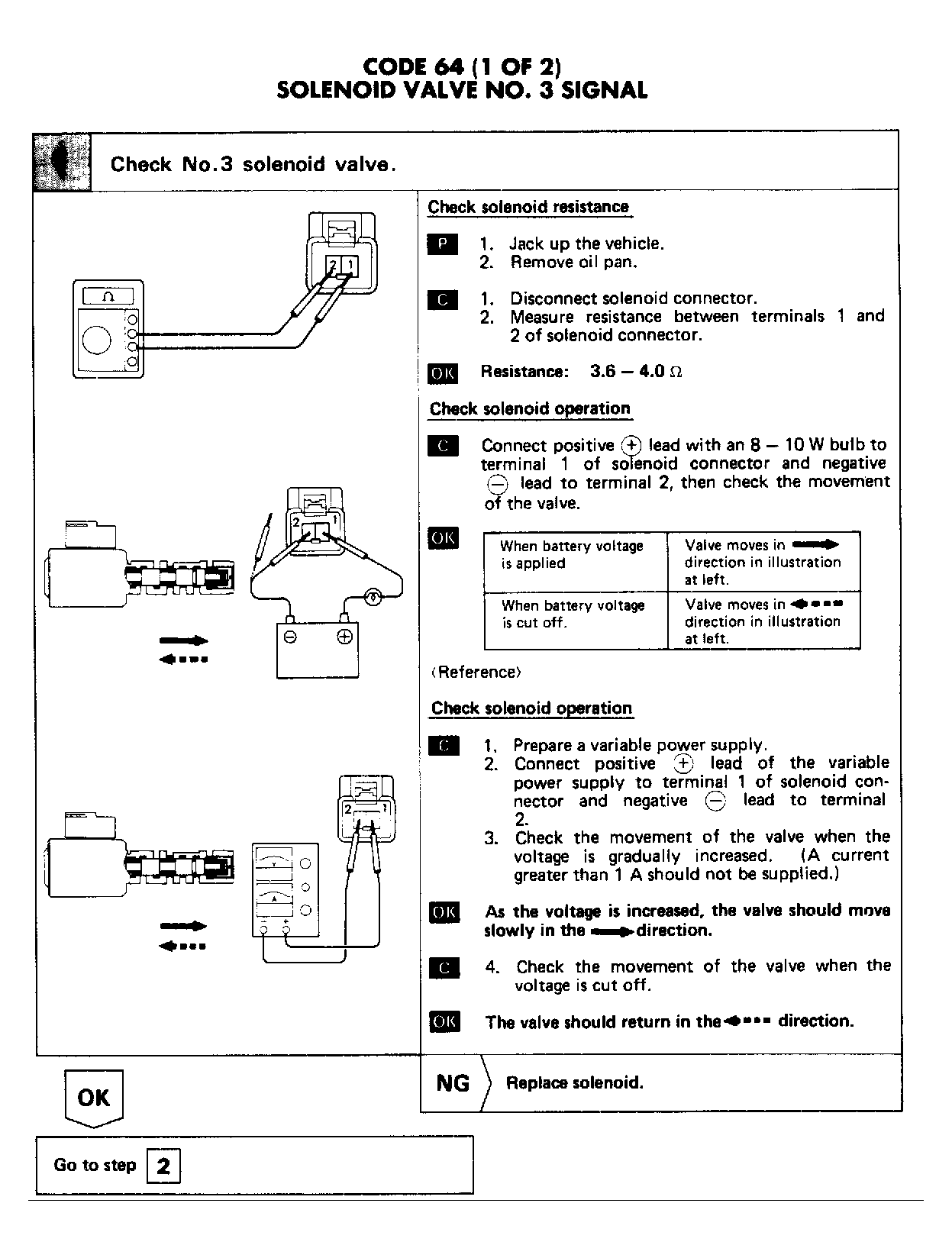

Fig 1: Code 64: Solenoid Valve No. 3 Signal (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

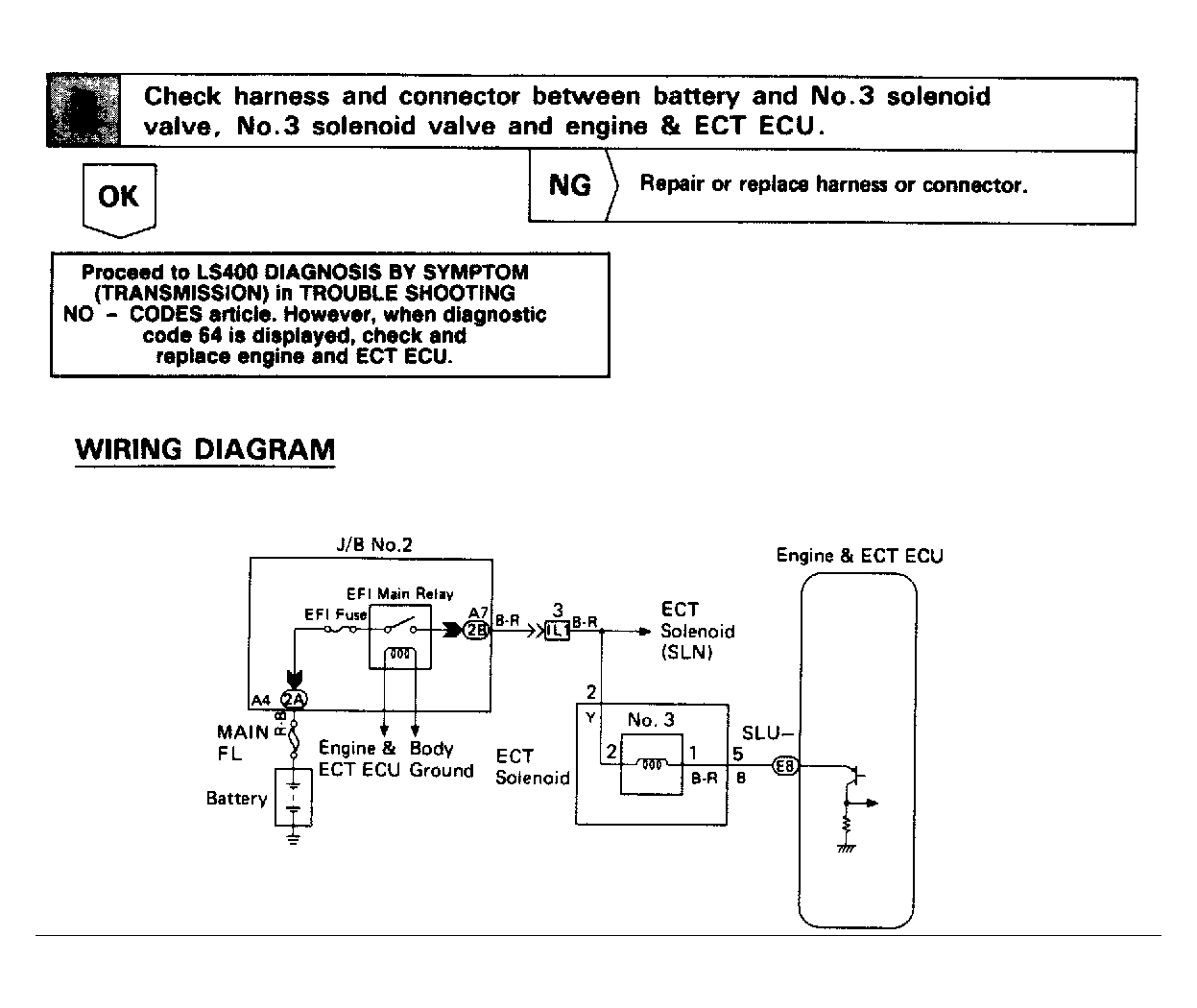

Fig 2: Code 64: Solenoid Valve No. 3 Signal (2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
