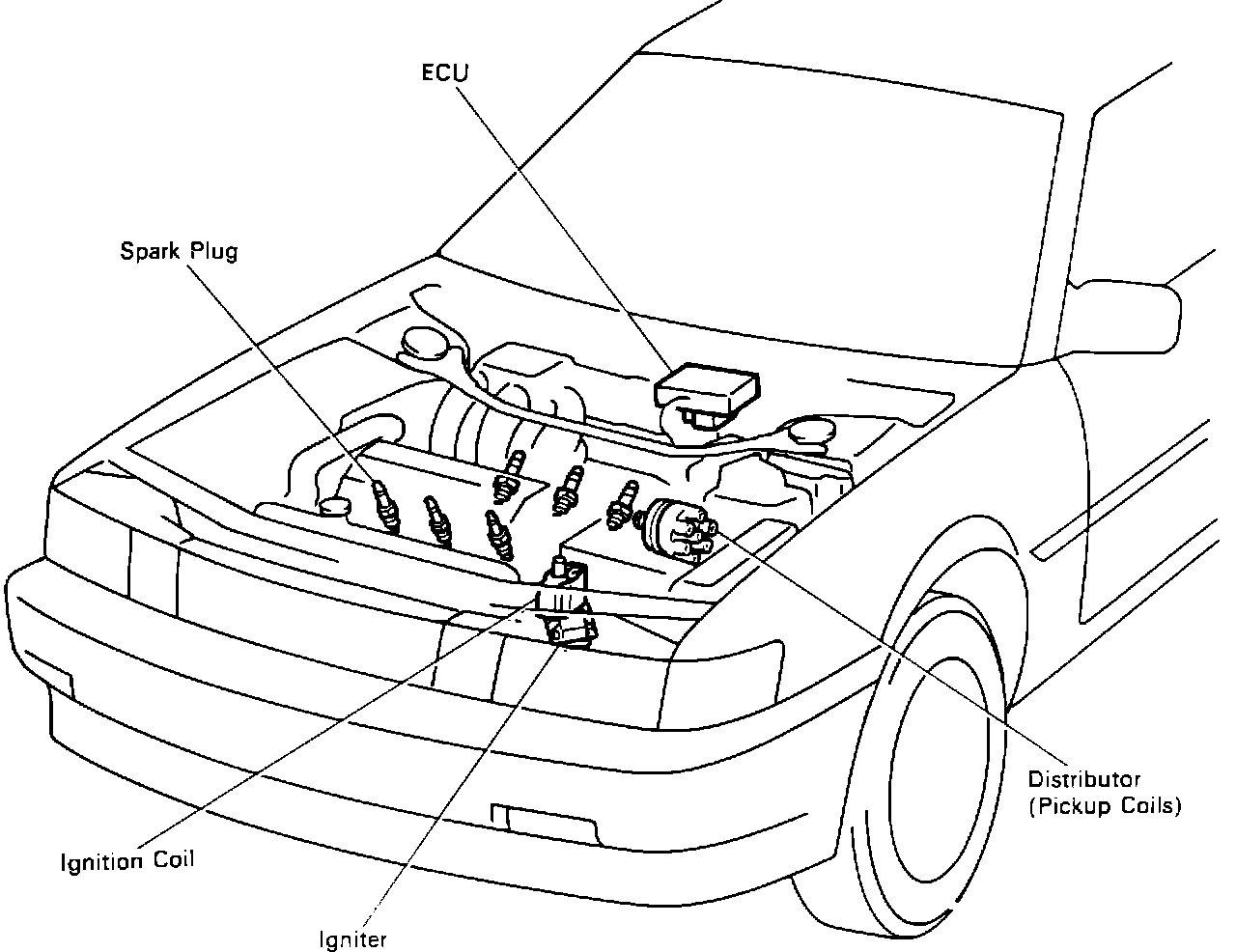

Distributor: Locations

Ignition System Components:

DISTRIBUTOR
Mounted to the end of the rear cylinder head.

ECU
Under center side of dash.

IGNITER
Mounted to the ignition coil at the front left of the engine.

IGNITION COIL
Mounted at the front left of the engine.
