Home >> Lexus >> 1990 >> ES 250 V6-2.5L (2VZ-FE) >> Repair and Diagnosis >> Lighting and Horns >> Lamp Control Module >> Locations

Lamp Control Module: Locations

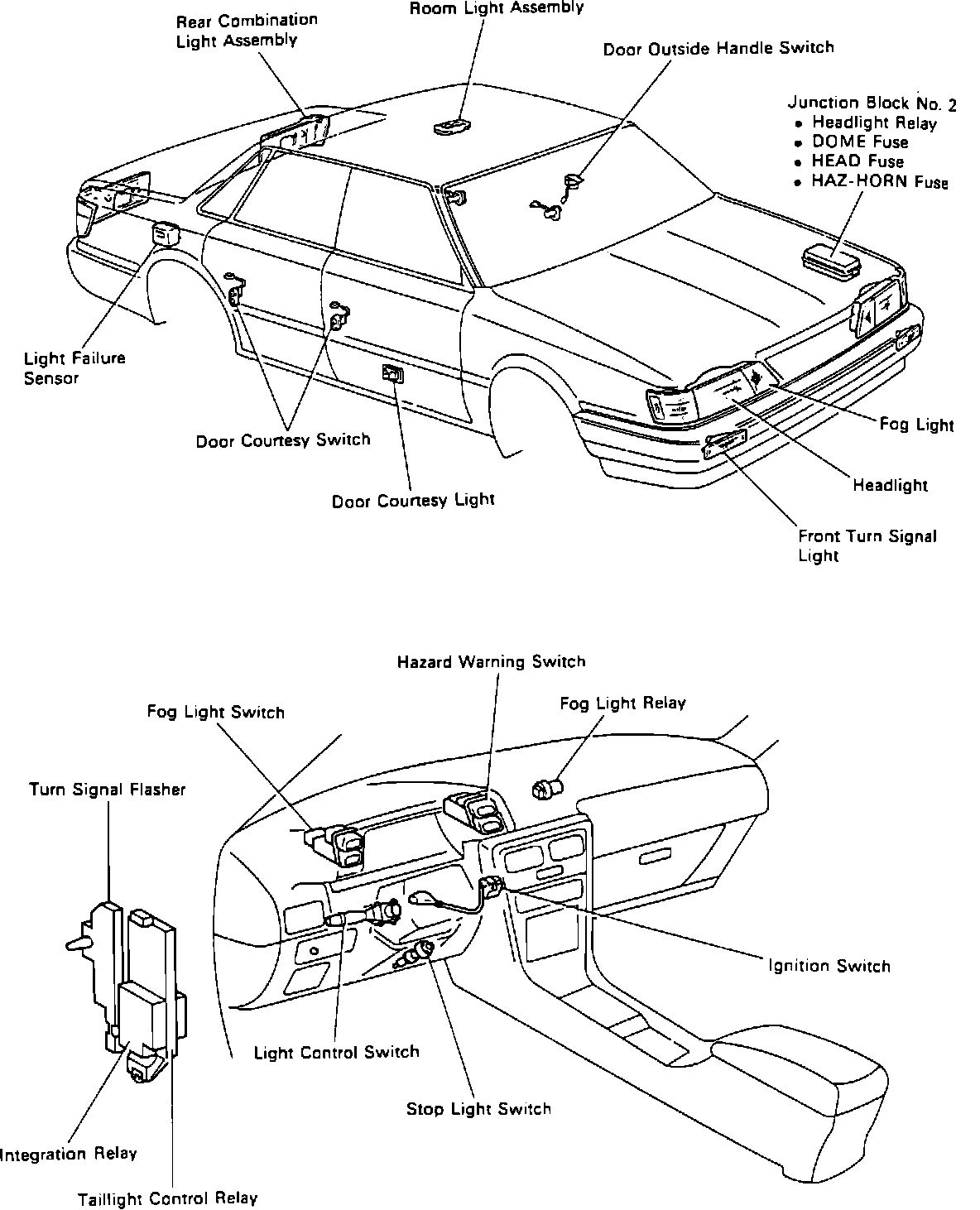

Lighting System Component Locations:




RH Front Corner Of Luggage Compartment
