Home >> Land Rover >> 2012 >> Range Rover (LM) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Suspension Control Module >> C3087 Module-Damping-Continuously Variable

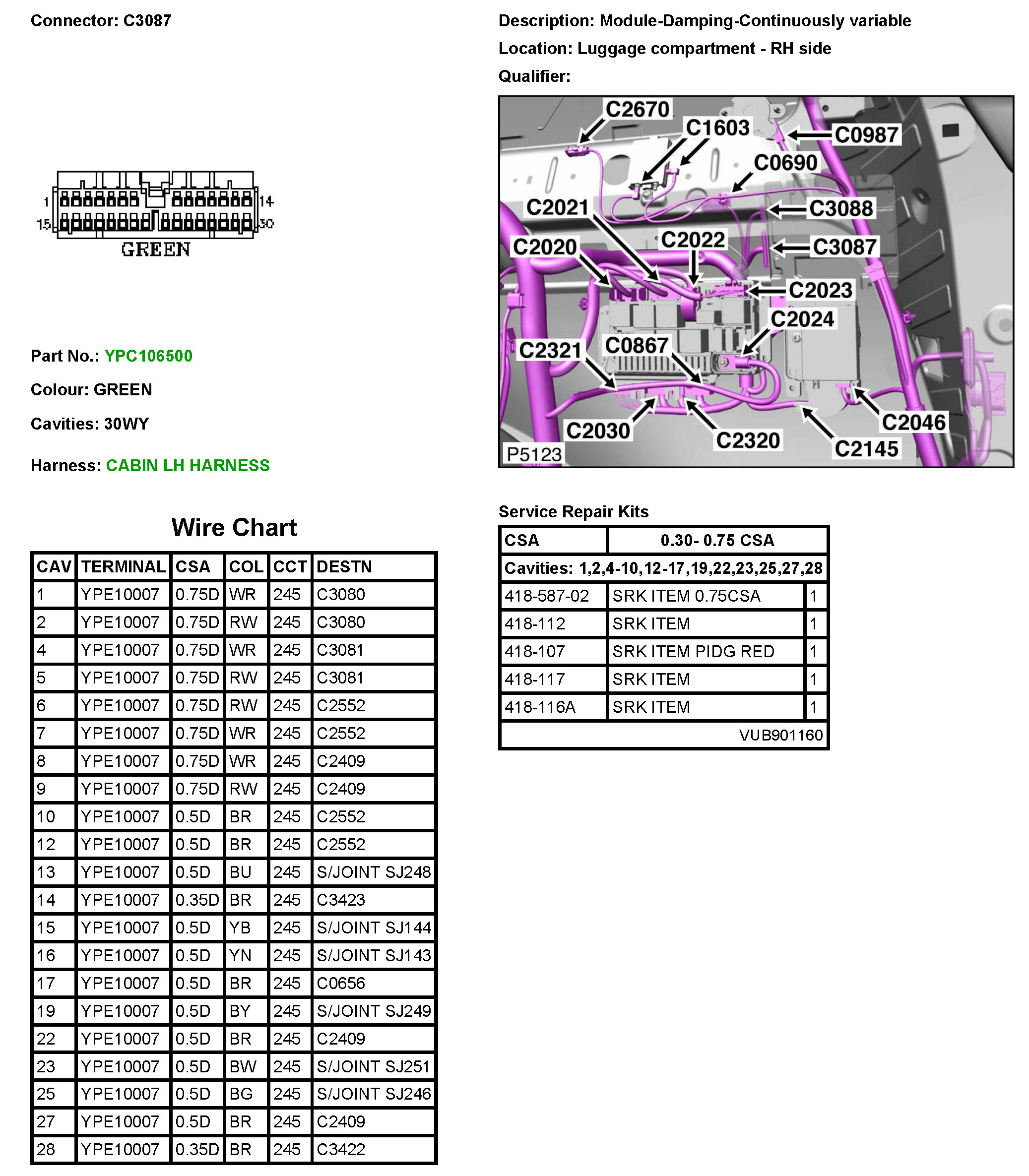

C3087 Module-Damping-Continuously Variable



C3087
