Range Rover (LM) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ride Height Sensor, Suspension Control
>>

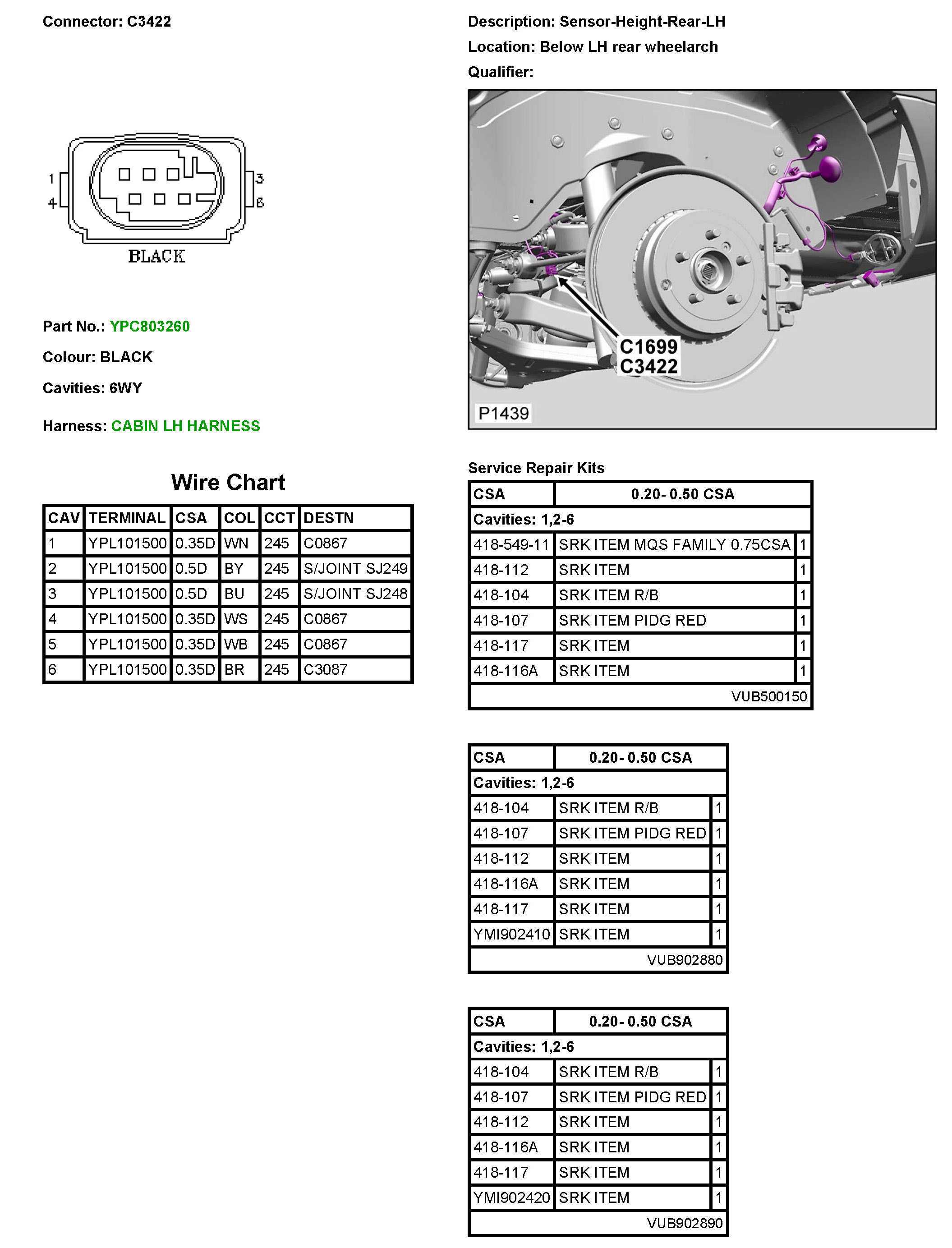

C3422 Sensor-Height-Rear-LH
C3422 Sensor-Height-Rear-LH
C3422
