Home >> Land Rover >> 2012 >> Range Rover (LM) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Control Module >> C3449 Module-Seat-Front-LH

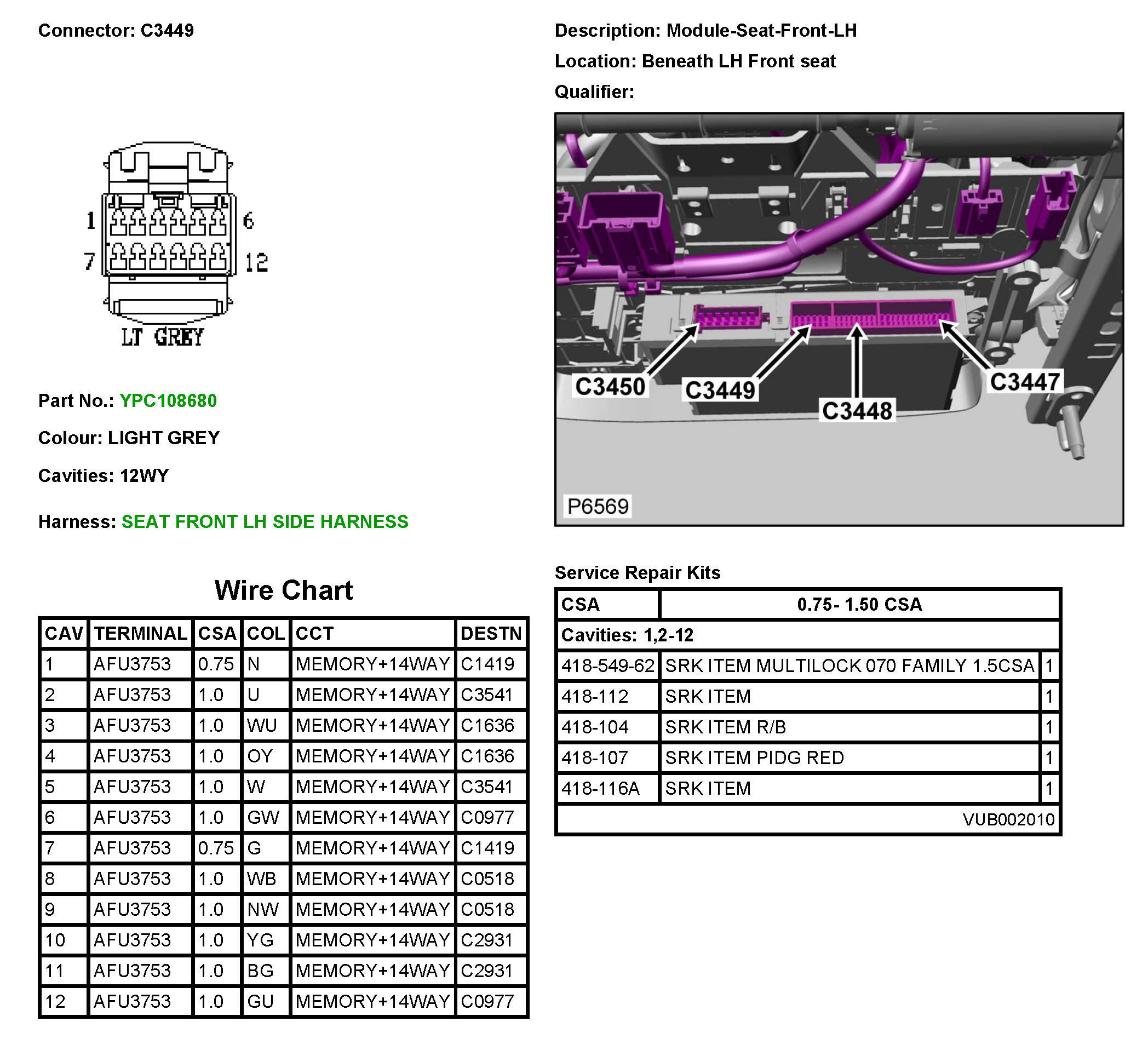

C3449 Module-Seat-Front-LH



C3449
