Range Rover (LM) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Parking Assist Control Module
>>

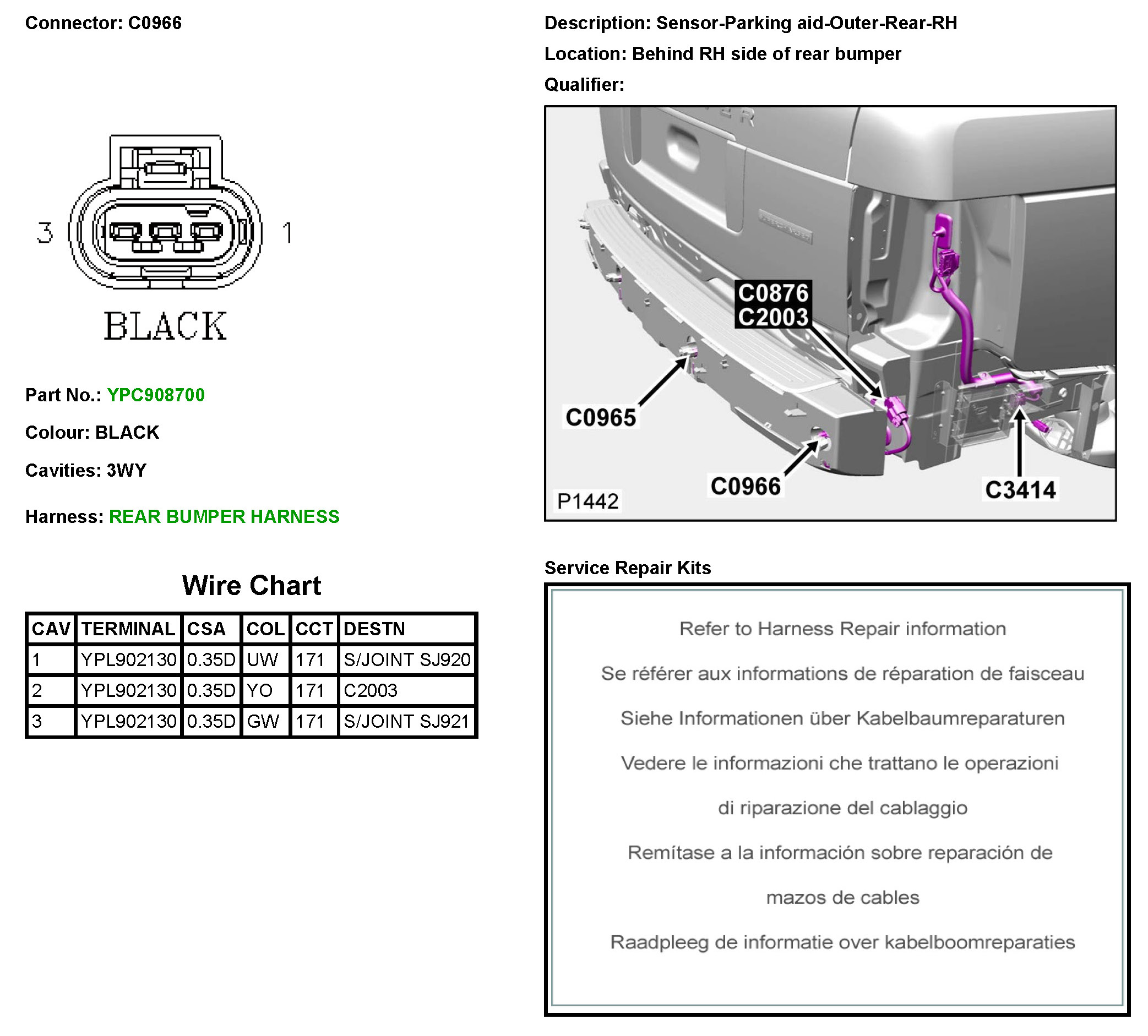

C0966 Sensor-Parking aid-Outer-Rear-RH
C0966 Sensor-Parking aid-Outer-Rear-RH
C0966
