Home >> Land Rover >> 2012 >> Range Rover (LM) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Impact Sensor >> C2127 Sensor-Side Impact-Passenger Side-Rear

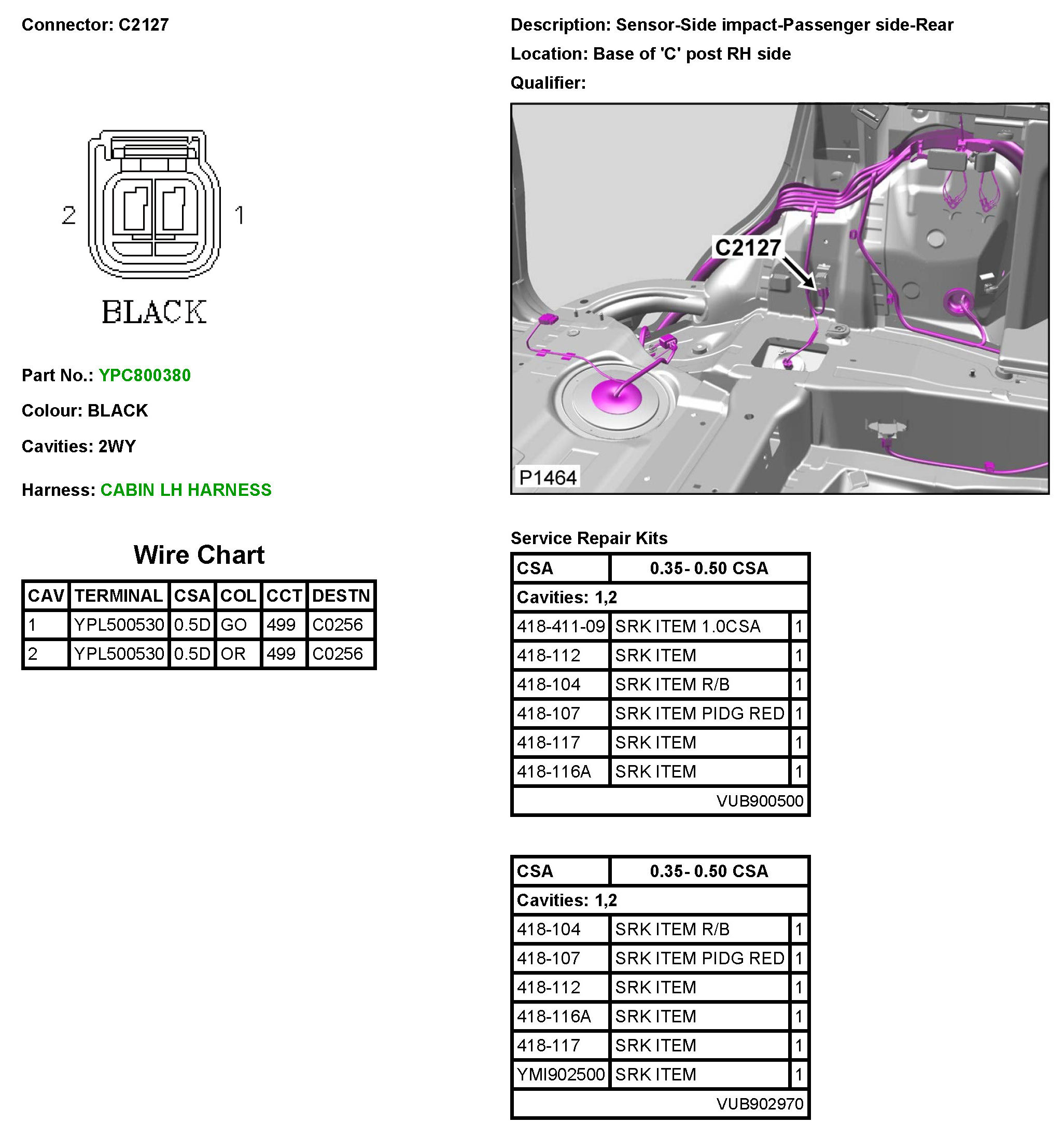

C2127 Sensor-Side Impact-Passenger Side-Rear



C2127
