Entertainment System Control Module
>>

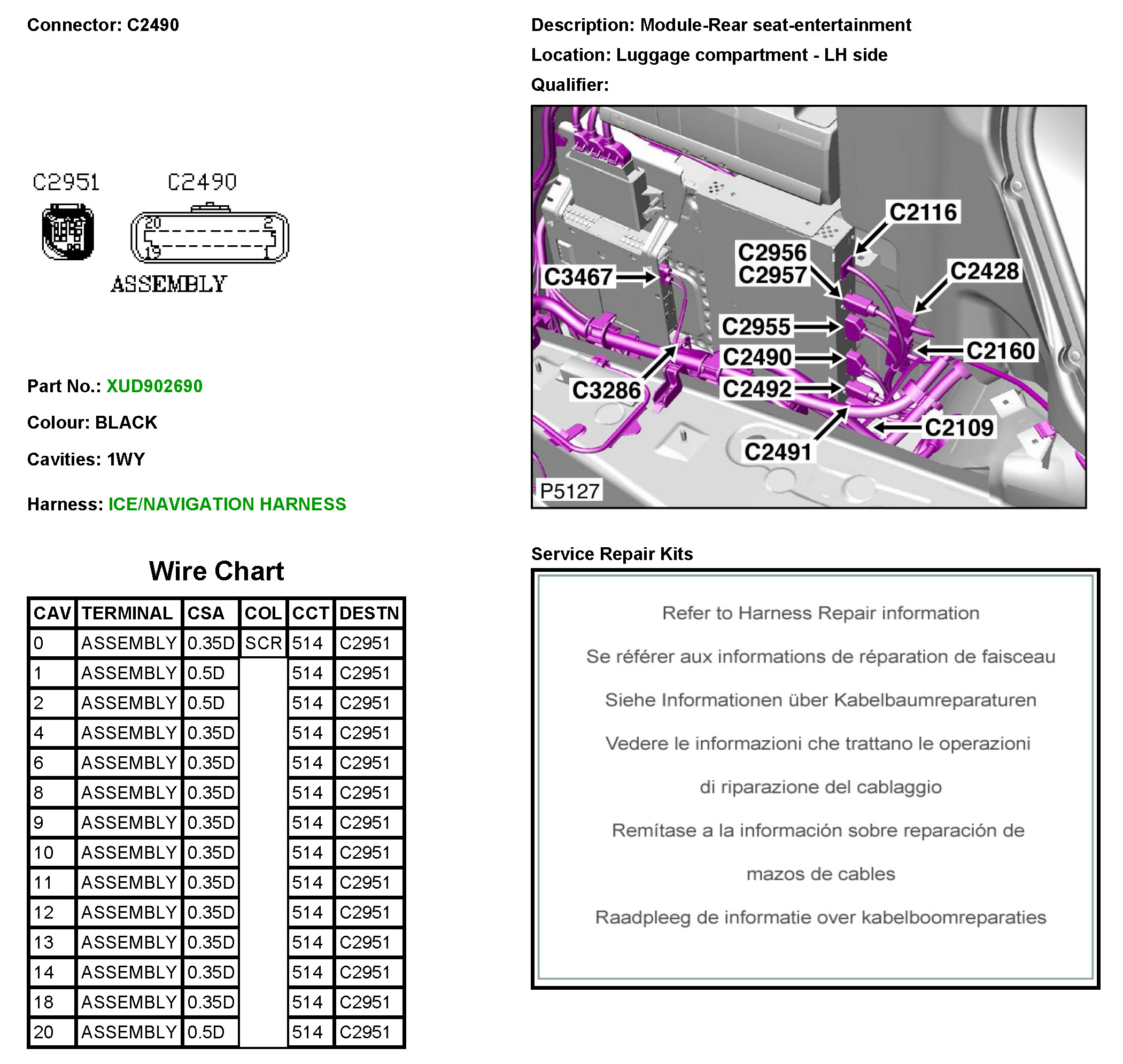

C2490 Module-Rear Seat-Entertainment
C2490 Module-Rear Seat-Entertainment
C2490
