Control Unit, Differential Lock
>>

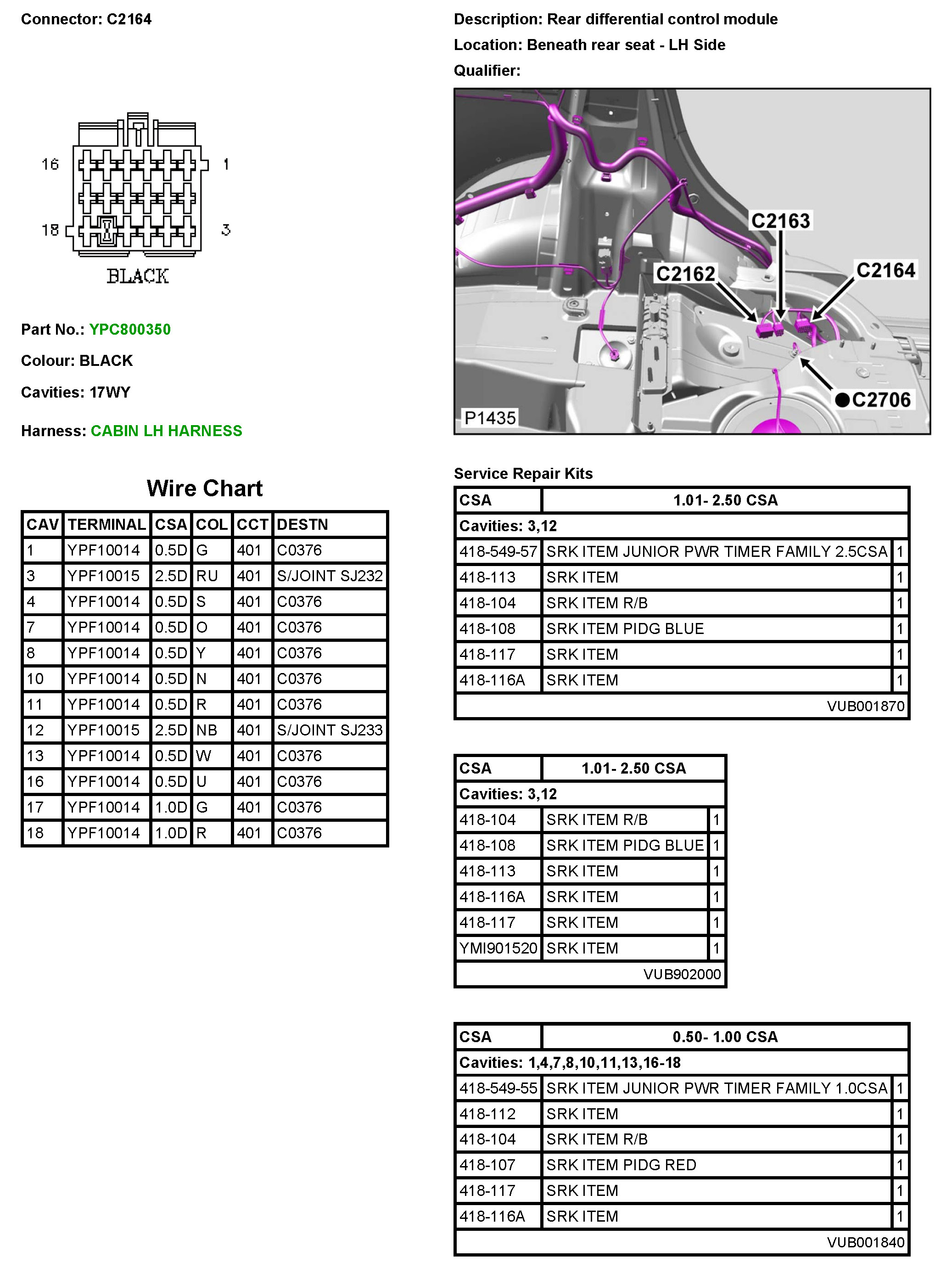

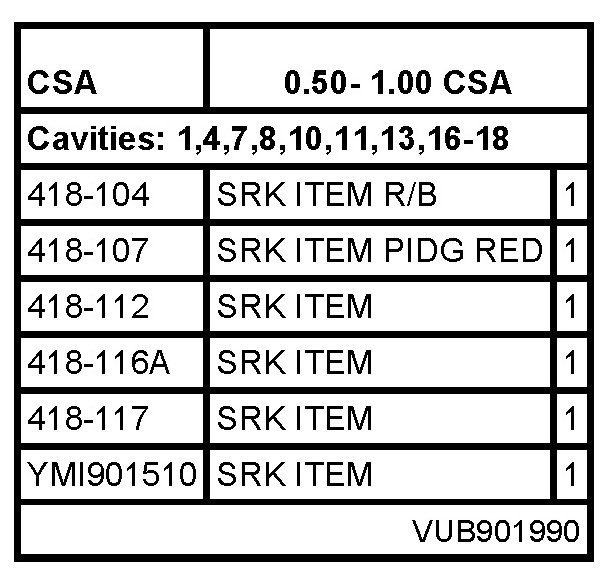

C2164 Rear Differential Control Module
C2164 Rear Differential Control Module
C2164
