Land Rover
>>
2012
>>
Range Rover (LM) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Combination Switch
>>

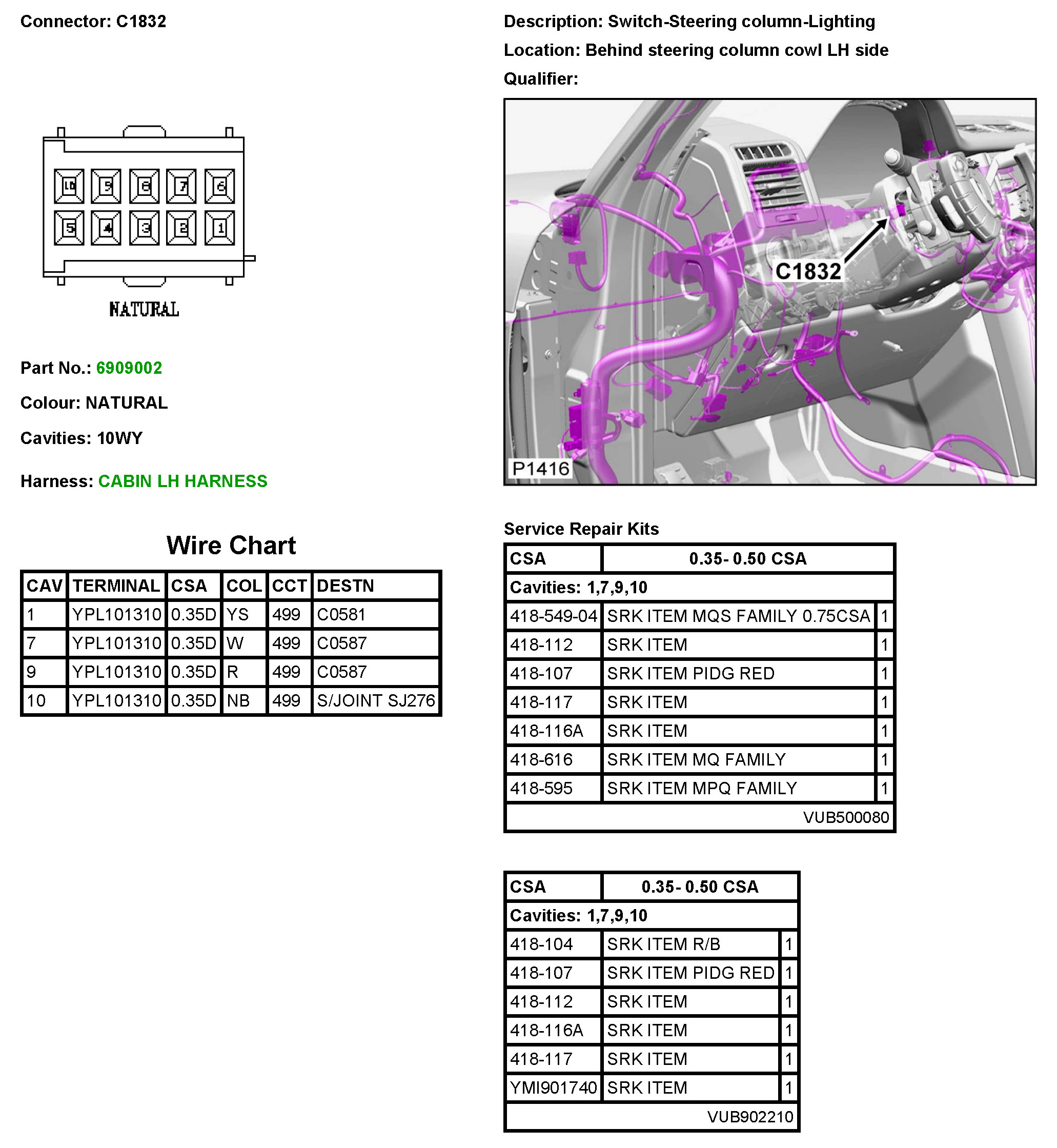

C1832 Switch-Steering Column-Lighting
C1832 Switch-Steering Column-Lighting
C1832
