Home >> Land Rover >> 2012 >> Range Rover (LM) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Alarm Module, (Vehicle Antitheft) >> C2160 Passive Anti-Theft System (PATS) Module

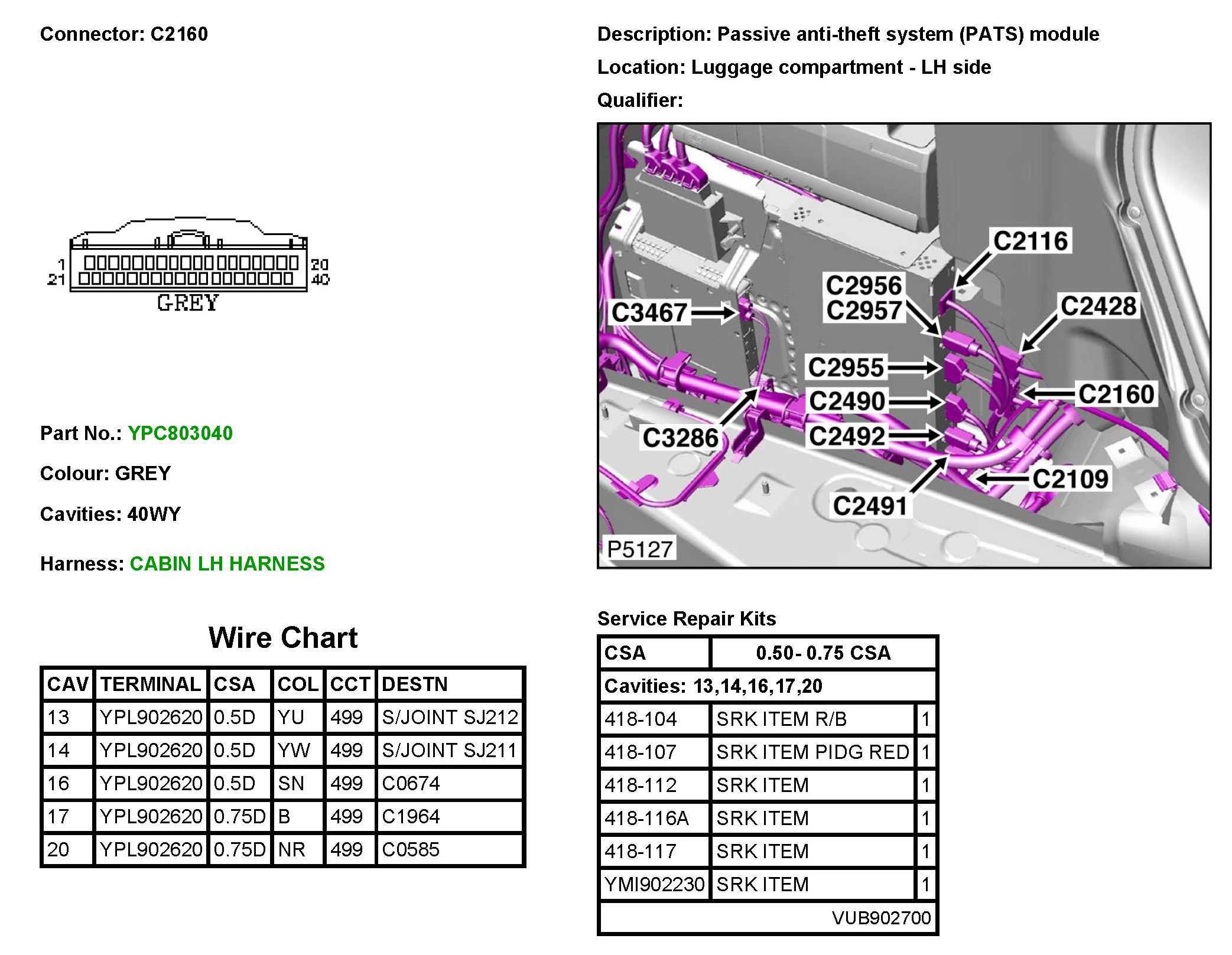

C2160 Passive Anti-Theft System (PATS) Module



C2160
