Home >> Land Rover >> 2012 >> Range Rover (LM) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module >> C0256 Restraints Control Module (RCM)

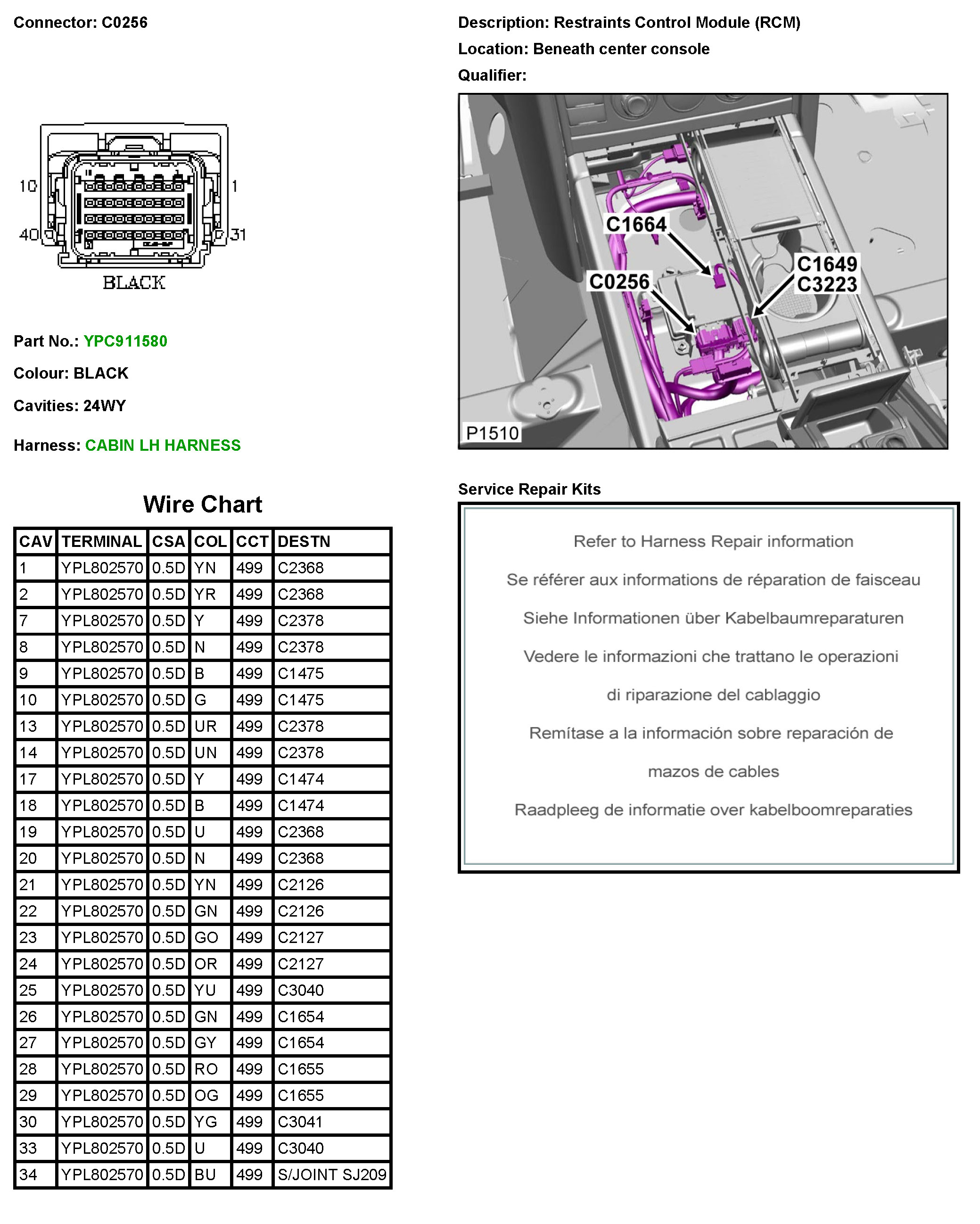

C0256 Restraints Control Module (RCM)



C0256
