Land Rover
>>
2012
>>
LR4 (LA) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Suspension Control Module
>>

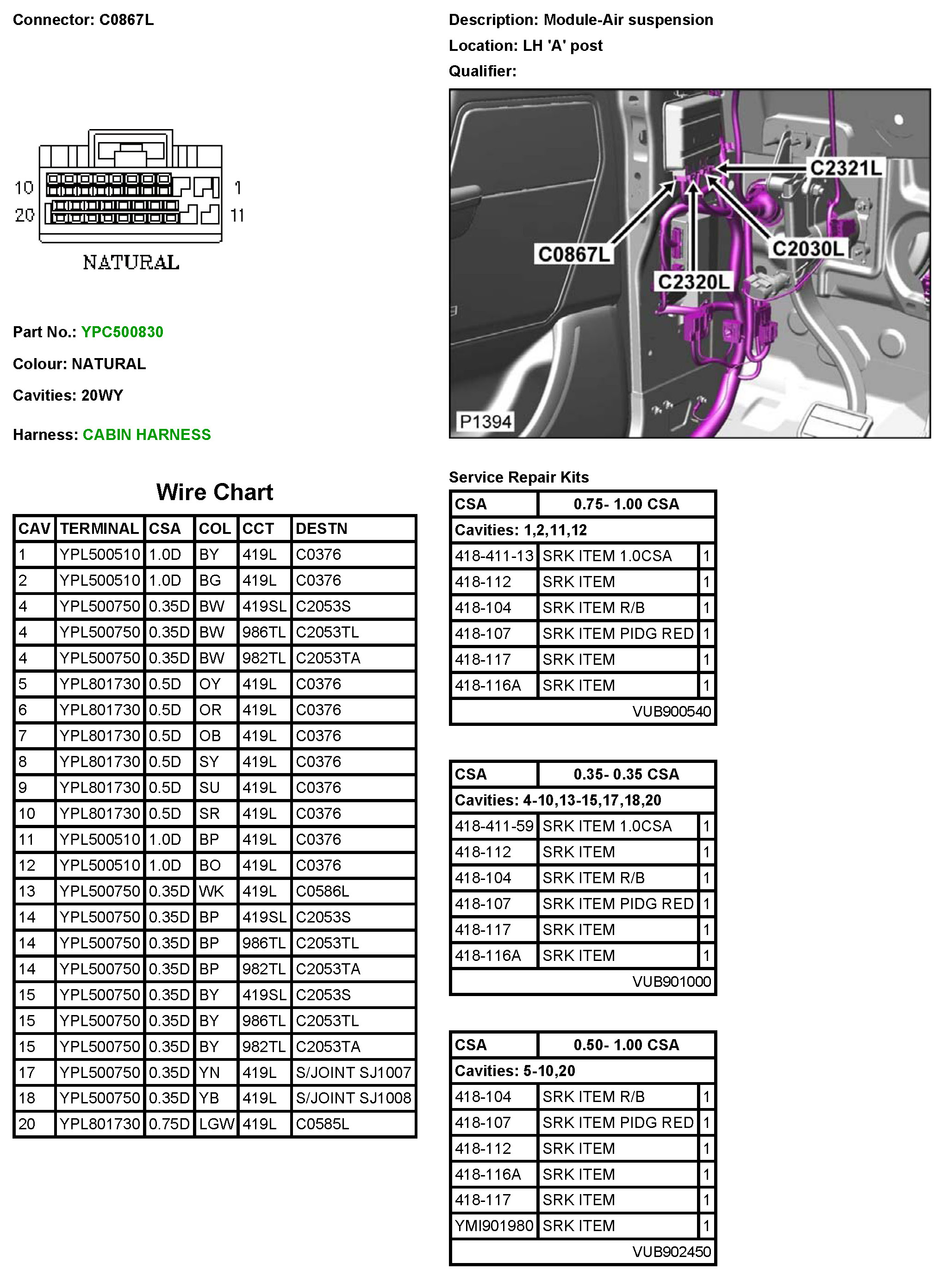

C0867L Module-Air Suspension
C0867L Module-Air Suspension
C0867L
