Steering Column Lock
>>

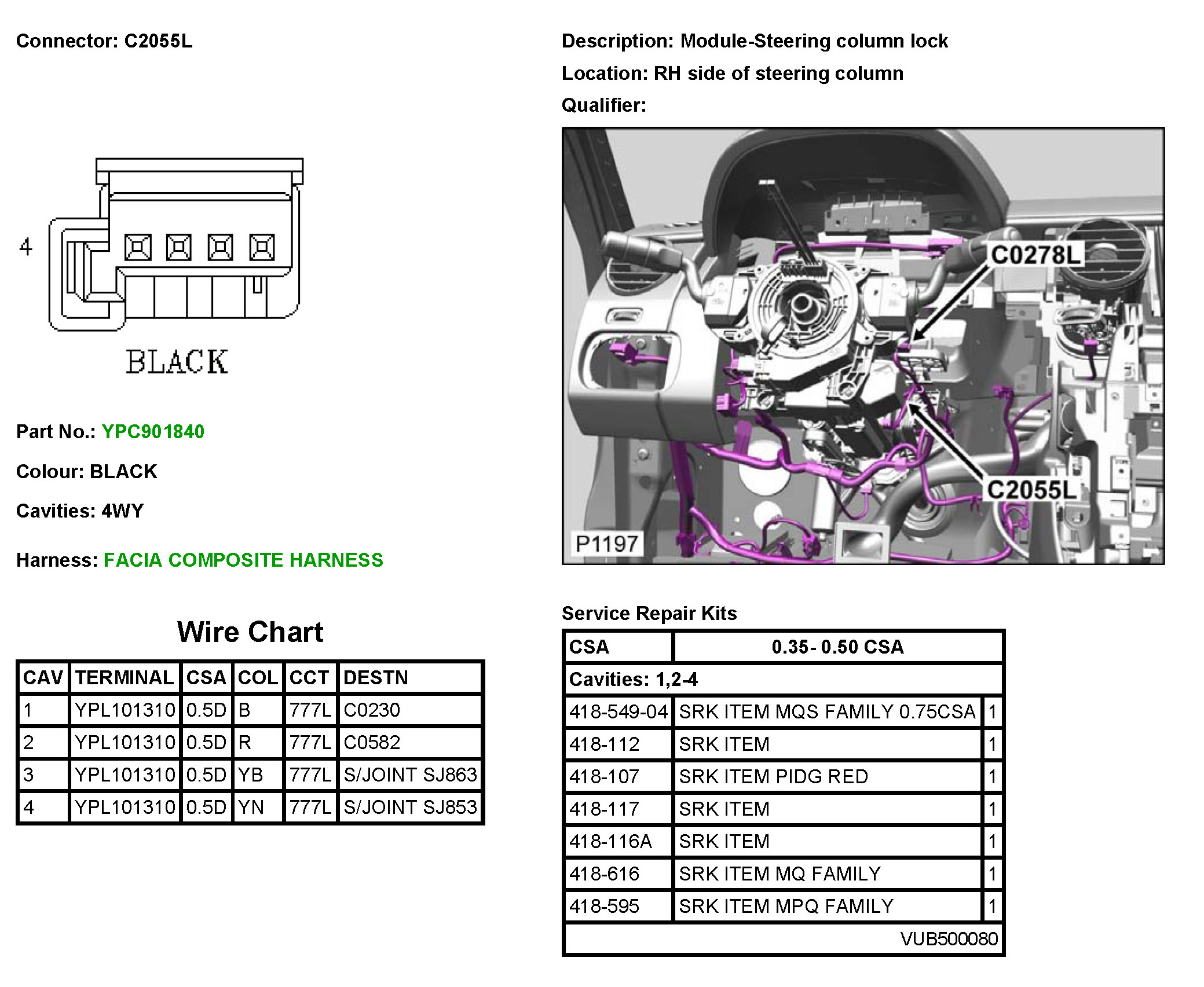

C2055L Module-Steering Column lock
C2055L Module-Steering Column lock
C2055L
