Land Rover
>>
2012
>>
LR4 (LA) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Occupant Sensor
>>

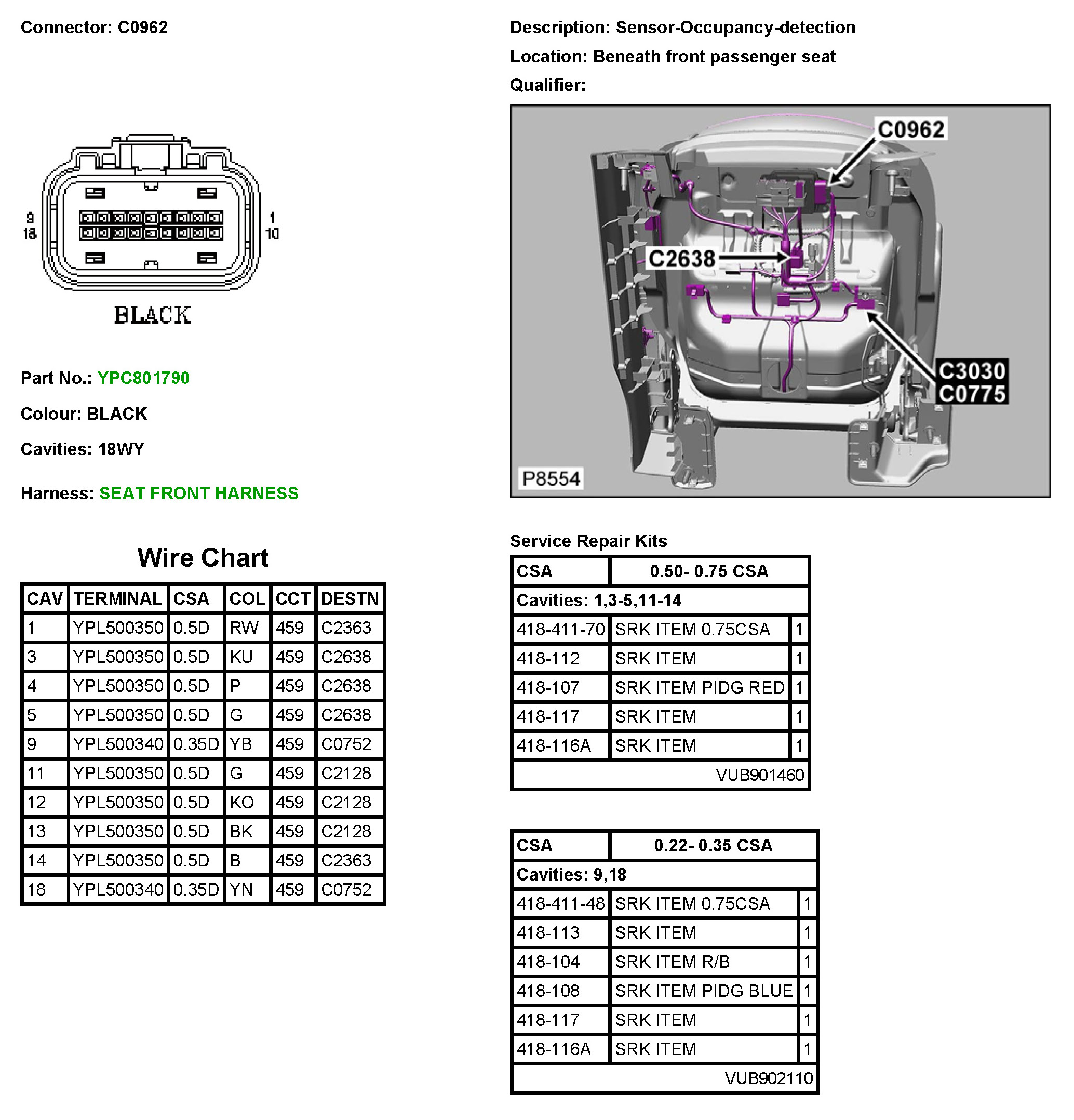

C0962 Sensor-Occupancy-Detection
C0962 Sensor-Occupancy-Detection
C0962
