Home >> Land Rover >> 2012 >> LR4 (LA) V8-5.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Parking Assist Distance Sensor >> C0964 Sensor-Parking Aid-Inner-Rear-LH

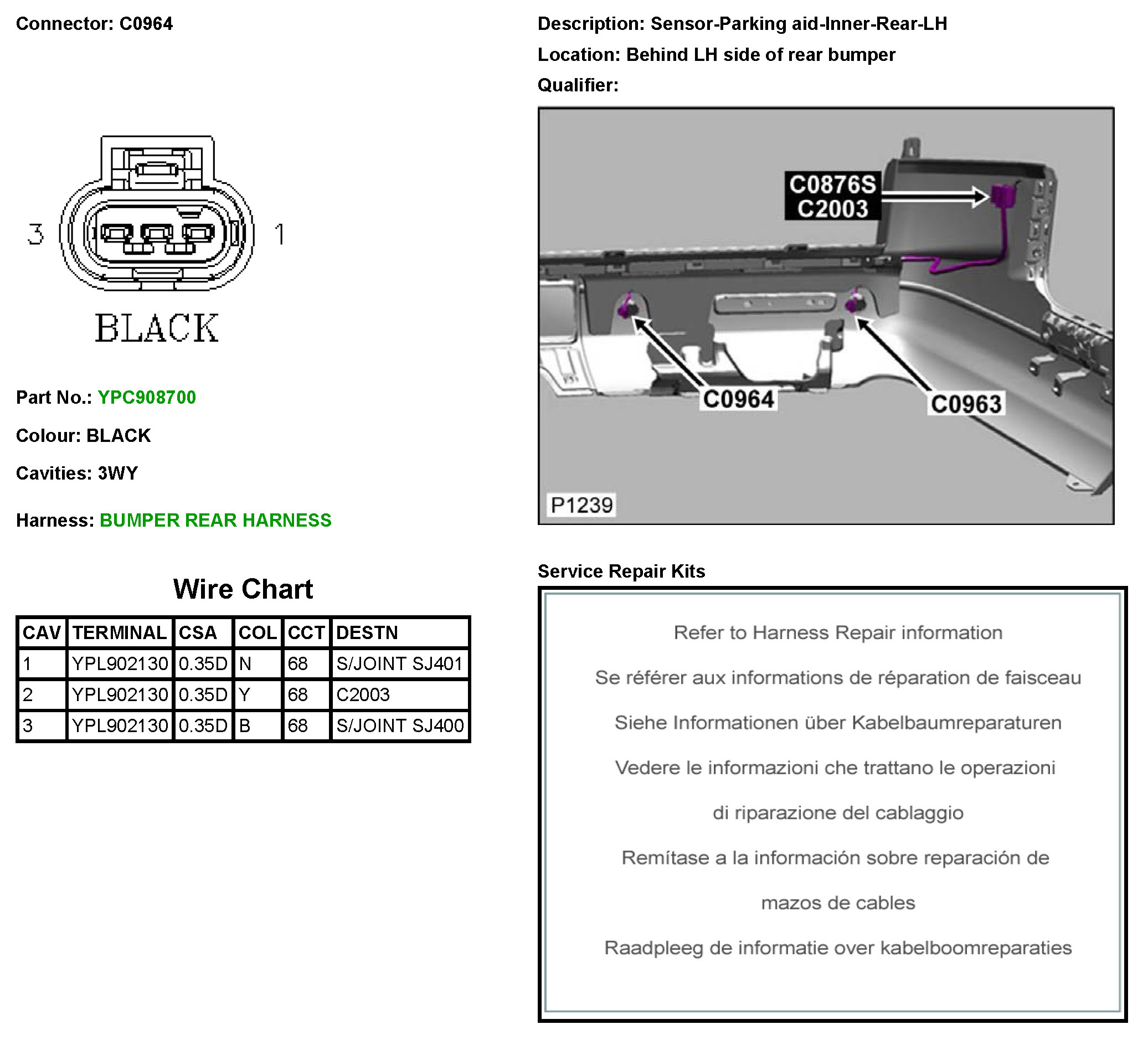

C0964 Sensor-Parking Aid-Inner-Rear-LH



C0964
