Land Rover
>>
2012
>>
LR4 (LA) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

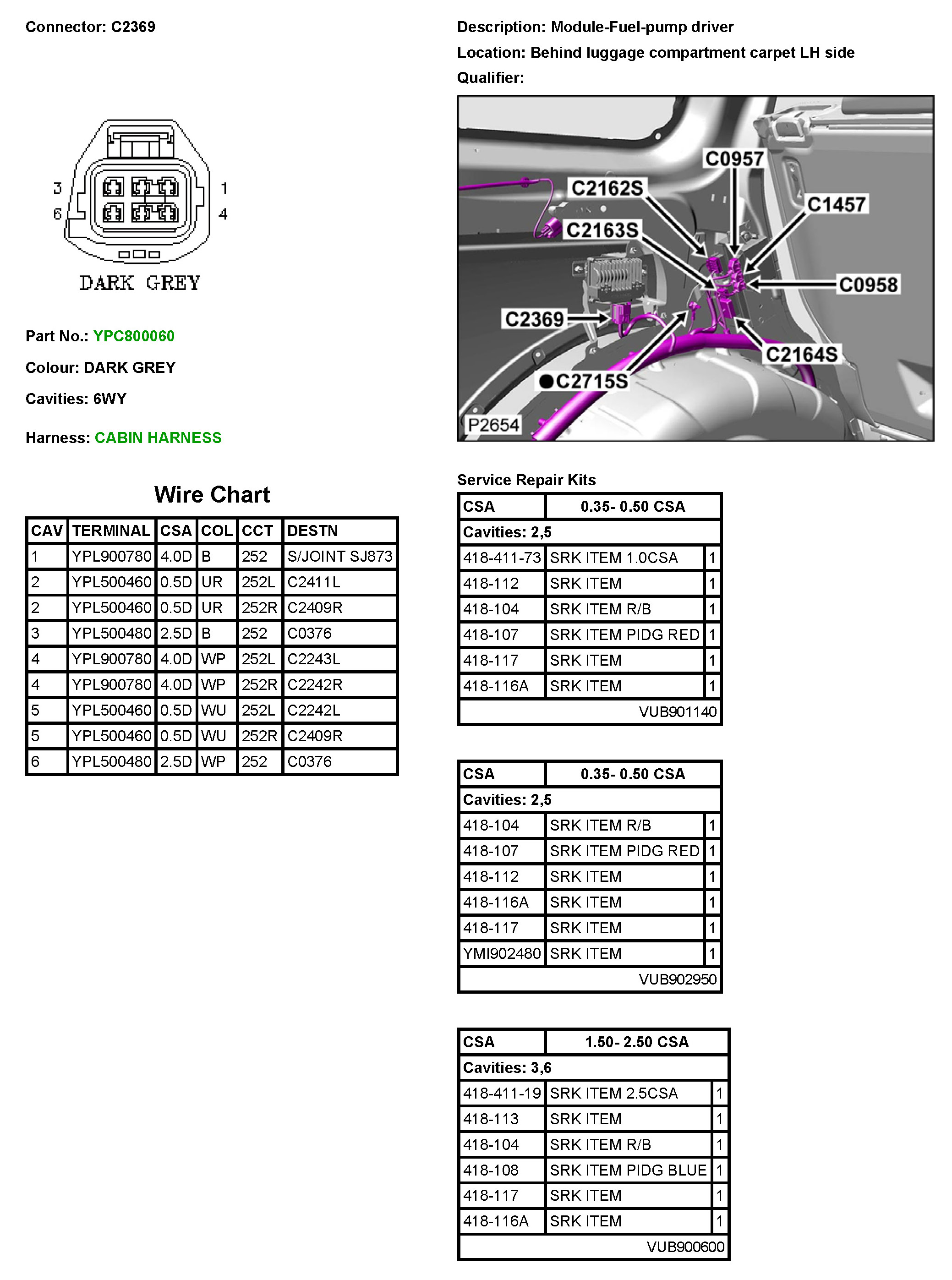

Fuel Pump Control Unit
Fuel Pump Control Unit
C2369
