Home >> Land Rover >> 2012 >> LR4 (LA) V8-5.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module >> C2636 Module-Air Bag--Driver

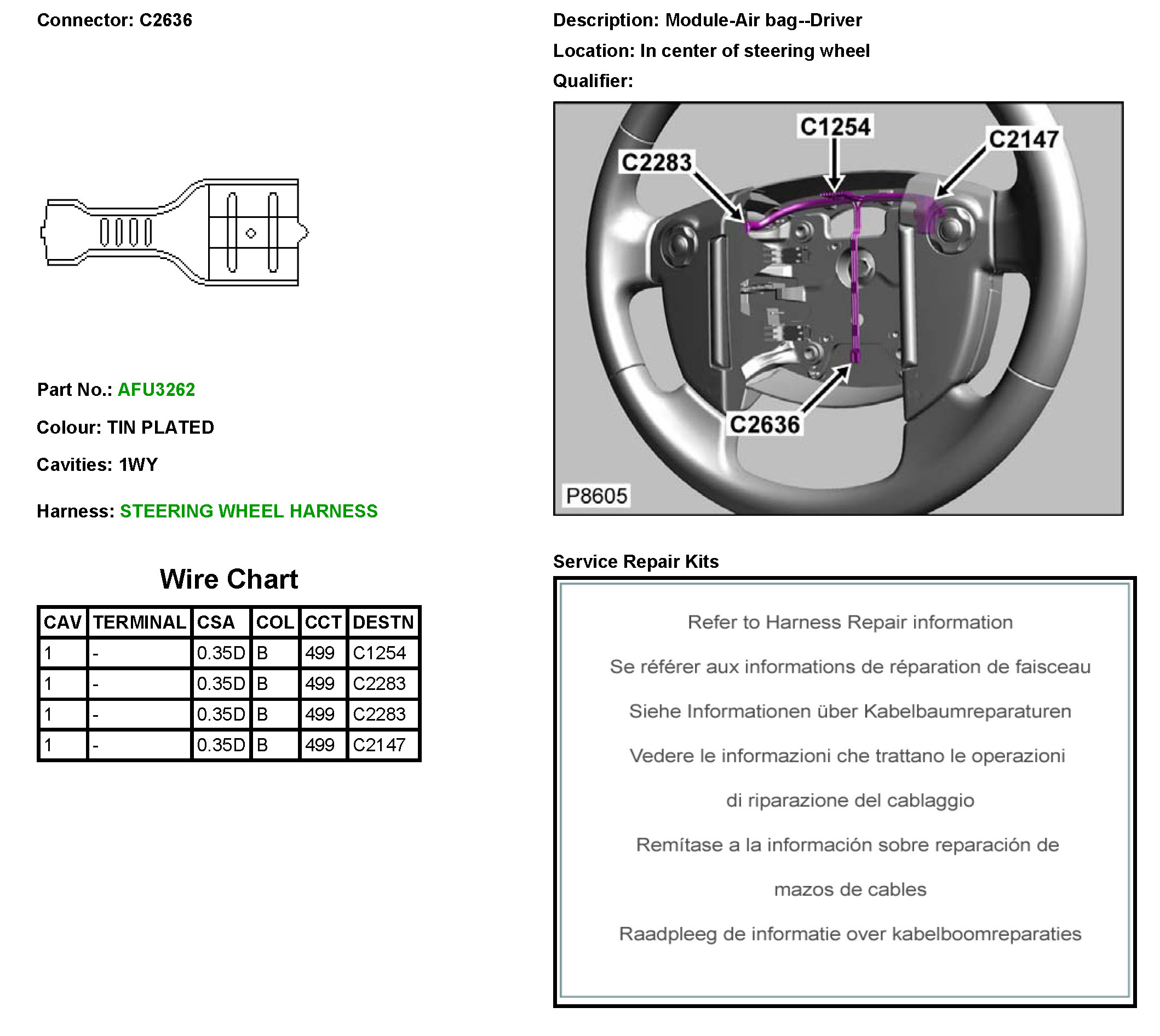

C2636 Module-Air Bag--Driver

C2636
