LEMON Manuals
: Even more car manuals for everyone
Home
>>
Land Rover
>>
2012
>>
LR4 (LA) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
>>

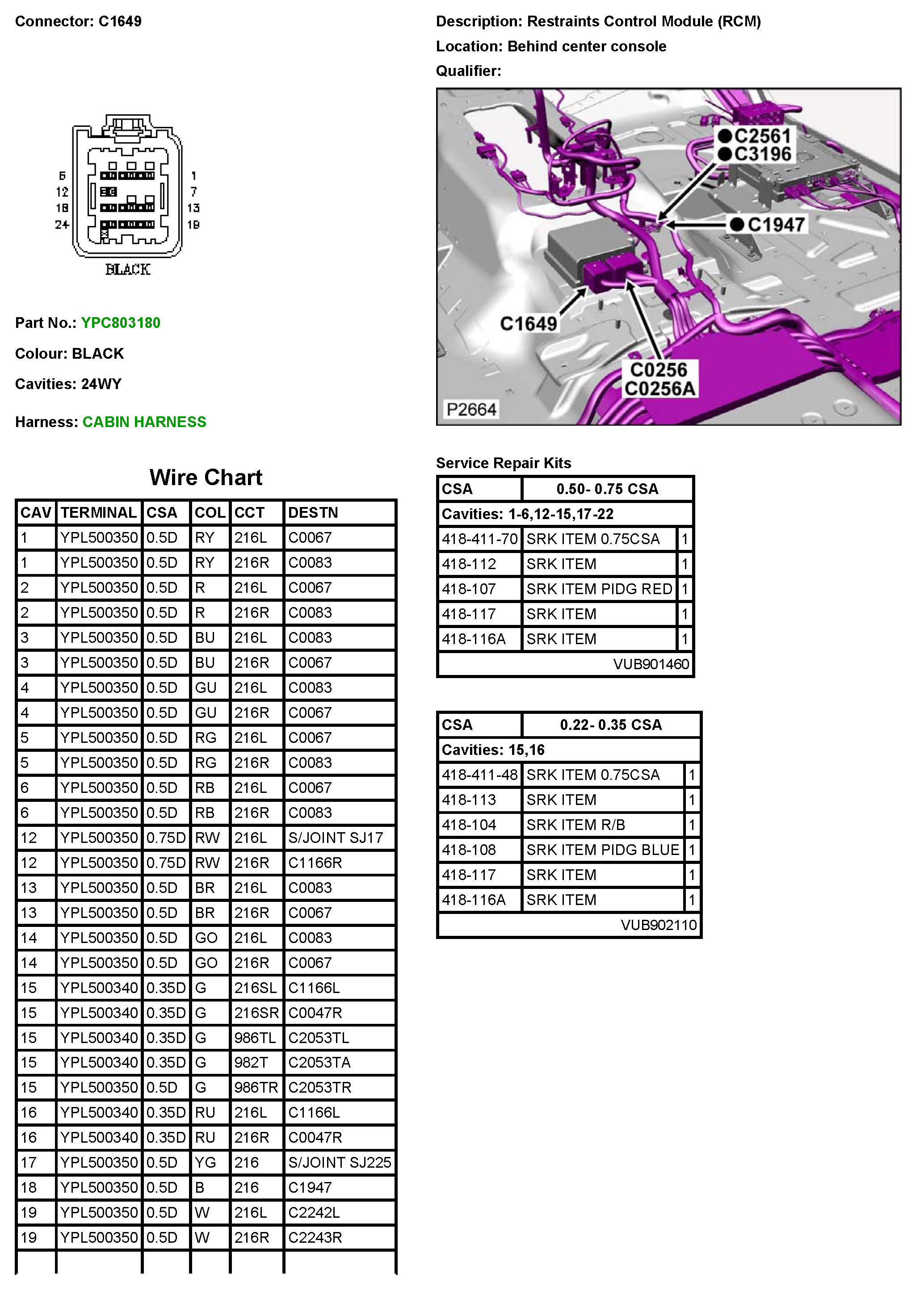

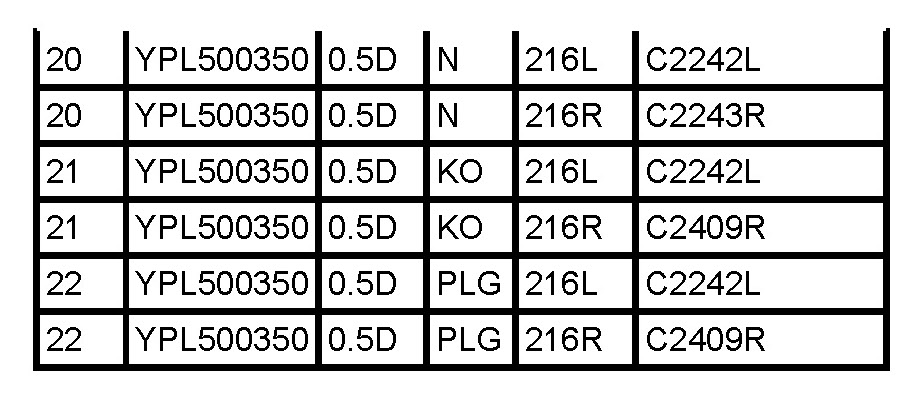

C1649 Restraints Control Module (RCM)
C1649 Restraints Control Module (RCM)
C1649
