Home >> Land Rover >> 2012 >> LR4 (LA) V8-5.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module >> C0406 Module-Air Bag-Driver

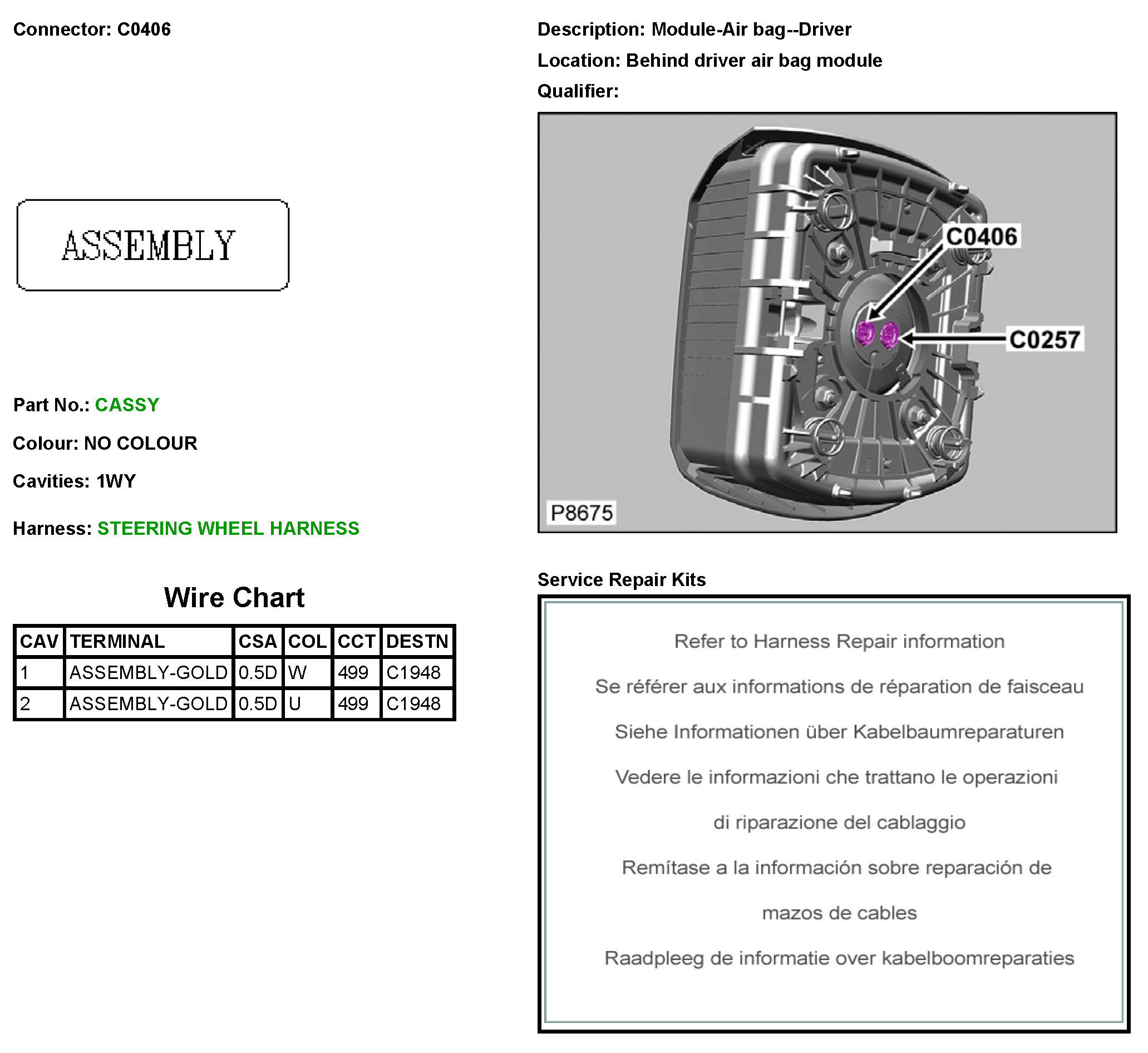

C0406 Module-Air Bag-Driver

C0406
