Home
>>
Land Rover
>>
2012
>>
LR4 (LA) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
>>

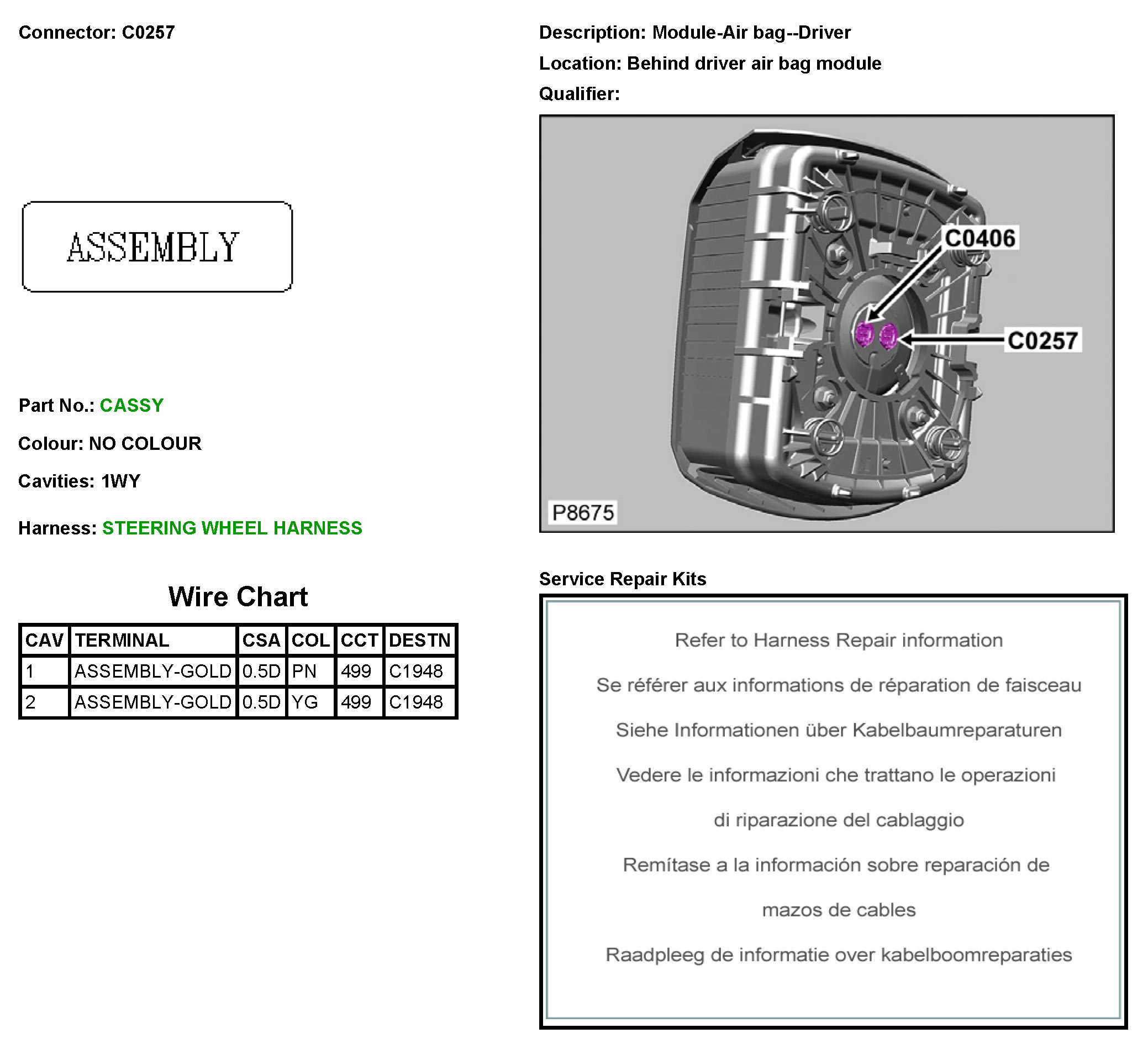

C0257 Module-Air Bag Driver
C0257 Module-Air Bag Driver
C0257
