Climate Control Assembly: Removal

  1. Remove the instrument panel console. Refer to INSTRUMENT PANEL CONSOLE .

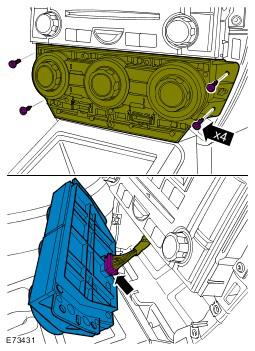

  2. Remove the climate control assembly.
    GJ0021200
