Rear Suspension

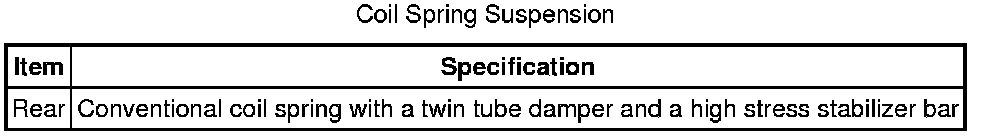

Specifications

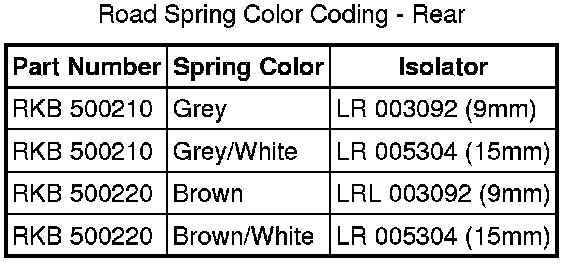

NOTE:
The grey or brown springs have a 9 mm thick isolator

NOTE:
The grey/white or brown/white springs have a 15 mm thick isolator
To maintain correct trim height make sure the spring colour and appropriate isolator is matched

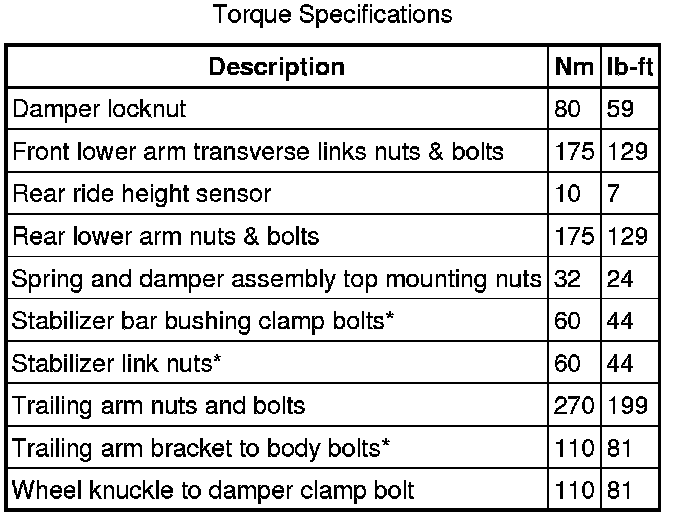

* New nuts/bolts must be fitted
