Land Rover
>>
2012
>>
LR2 (LF) L6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trailer Lighting Module
>>

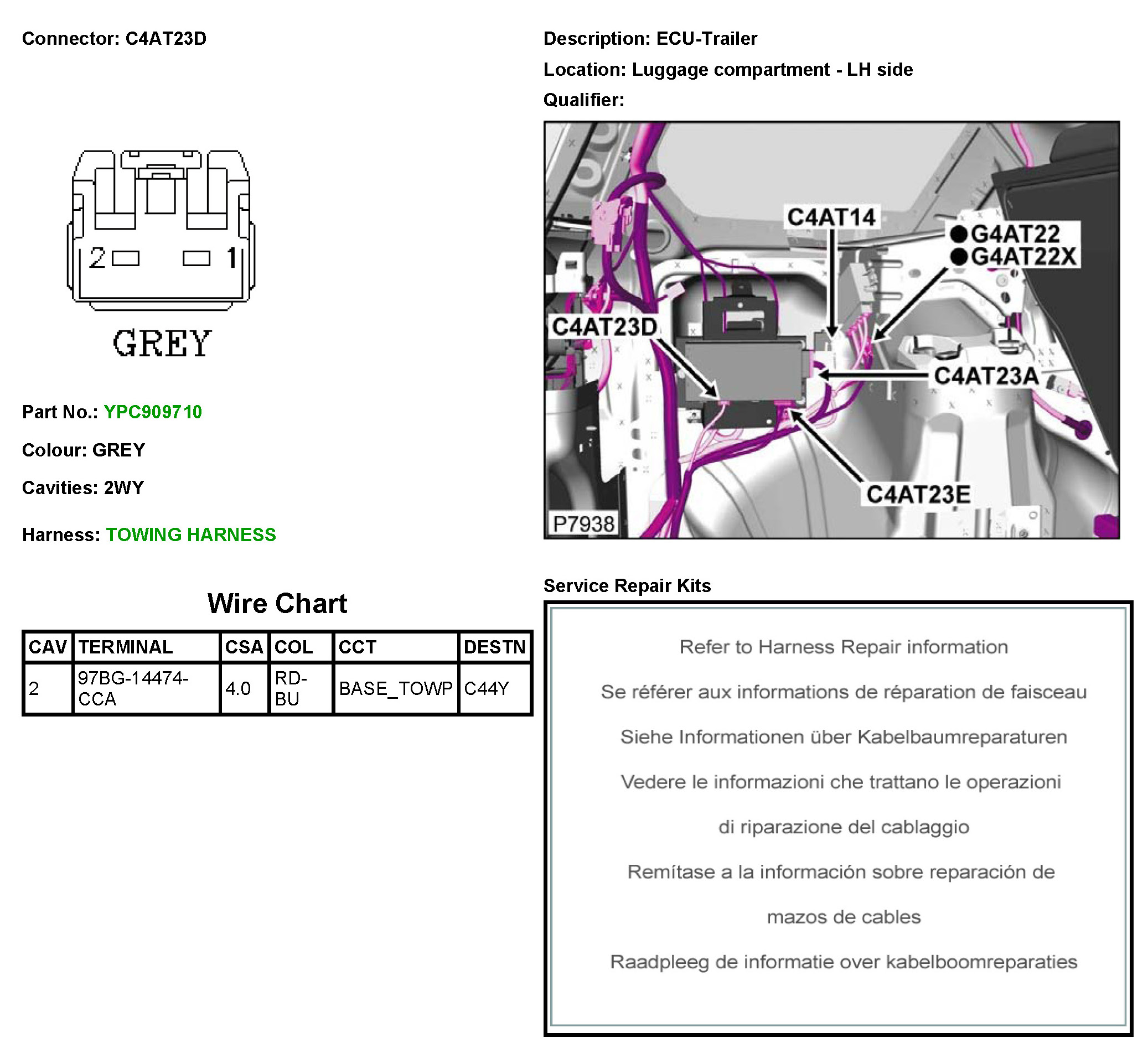

C4AT23D ECU-Trailer
C4AT23D ECU-Trailer
C4AT23D
