Home >> Land Rover >> 2012 >> LR2 (LF) L6-3.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Ride Height Sensor, Suspension Control >> C1LF15 Sensor-Height-Front

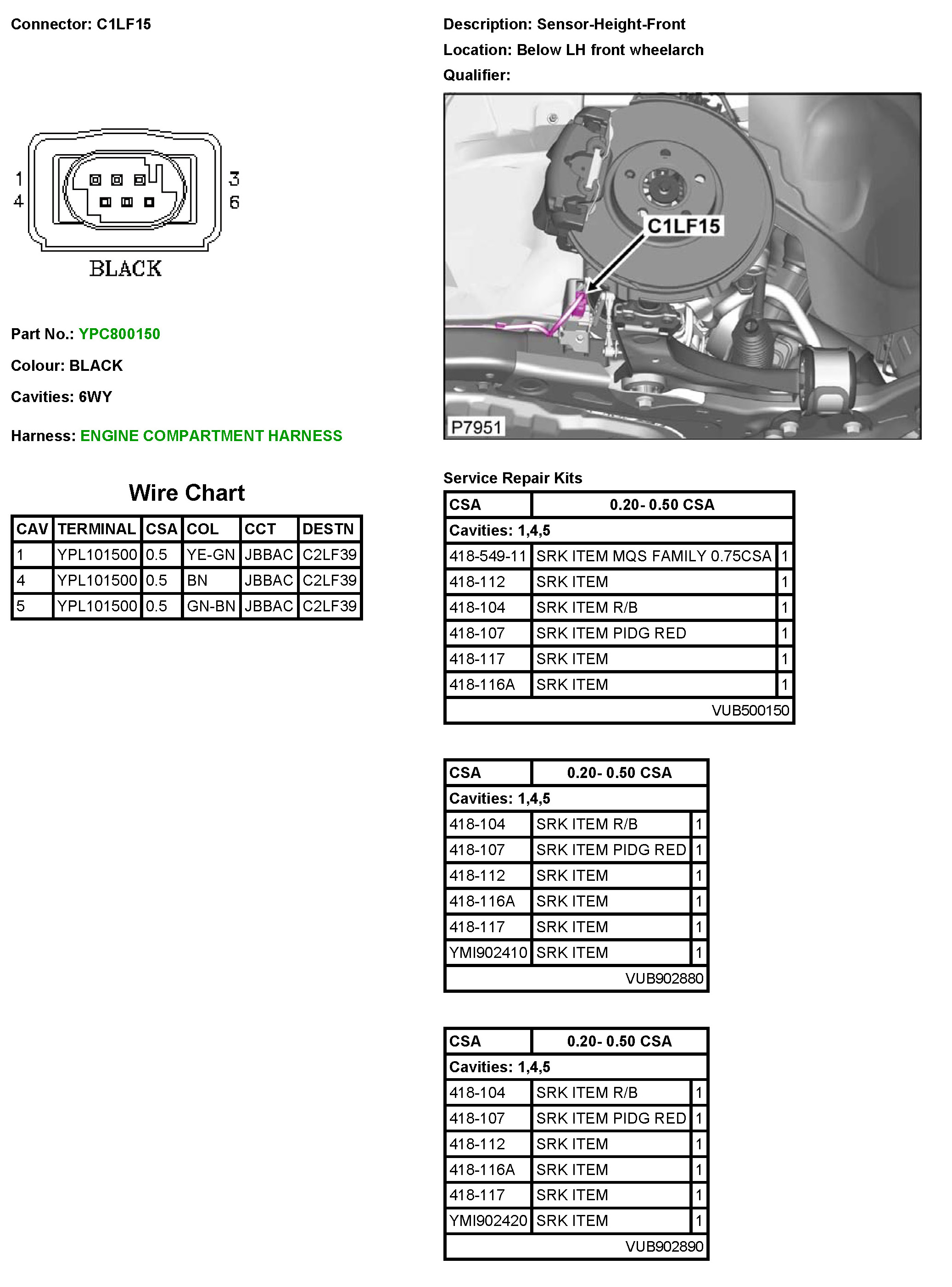

C1LF15 Sensor-Height-Front



C1LF15
