Home >> Land Rover >> 2012 >> LR2 (LF) L6-3.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Hood Sensor/Switch (For Alarm)

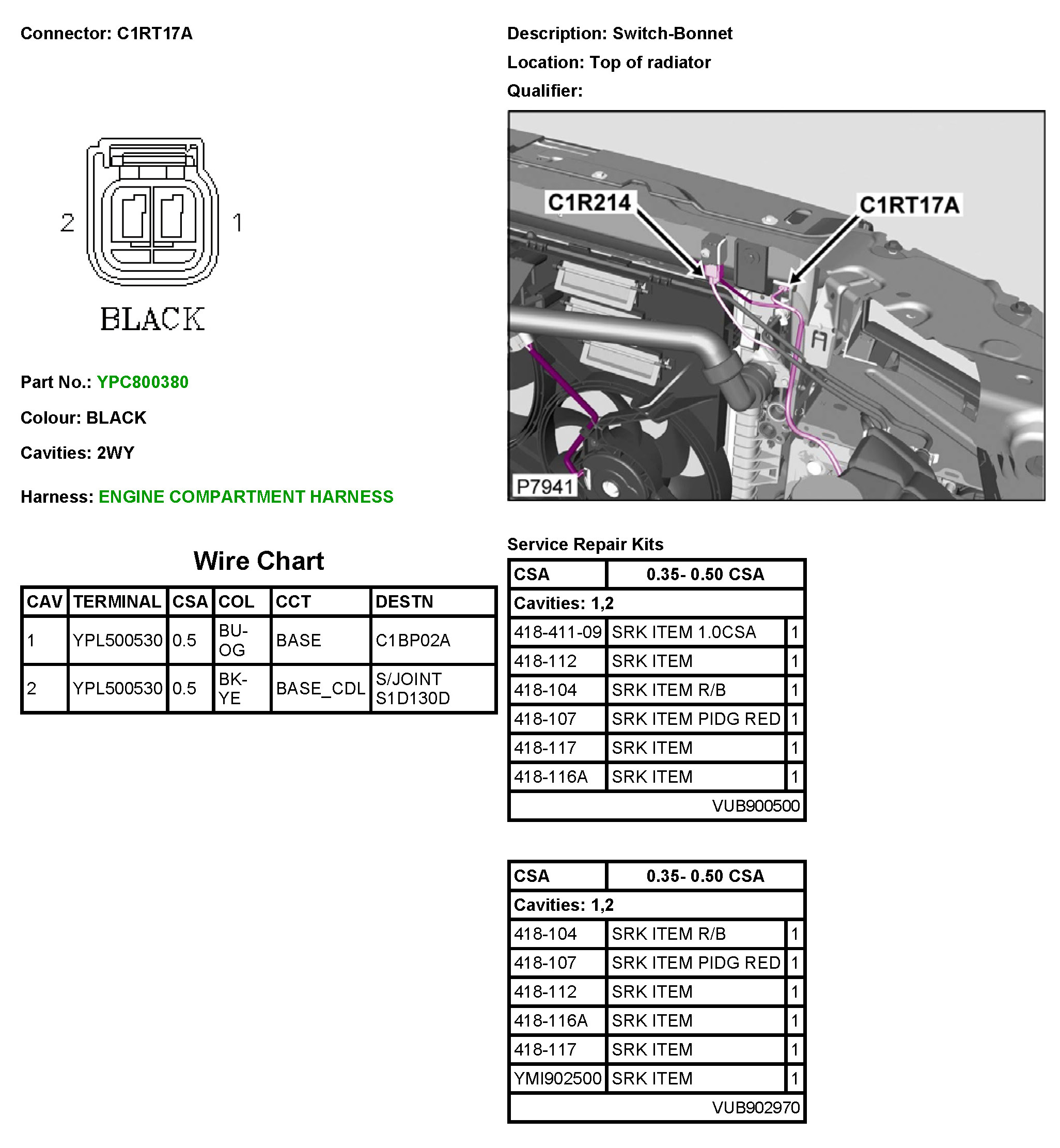

Hood Sensor/Switch (For Alarm)



C1RT17A
