Land Rover
>>
2012
>>
LR2 (LF) L6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C2LF39 - C2R115D
>>

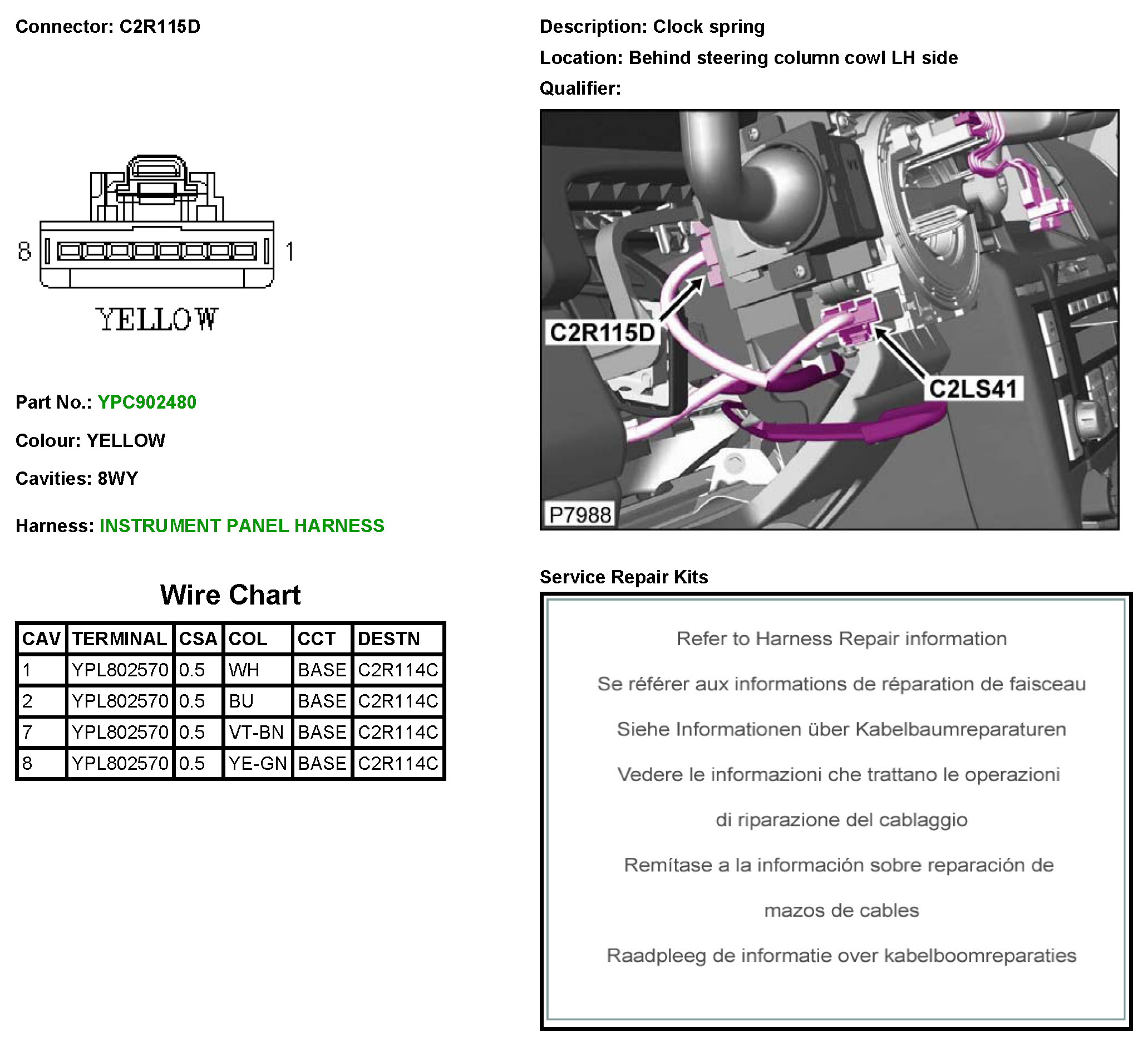

C2R115D
C2R115D
C2R115D
