Land Rover
>>
2012
>>
LR2 (LF) L6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Brakes and Traction Control
>>
Electronic Brake Control Module
Electronic Brake Control Module

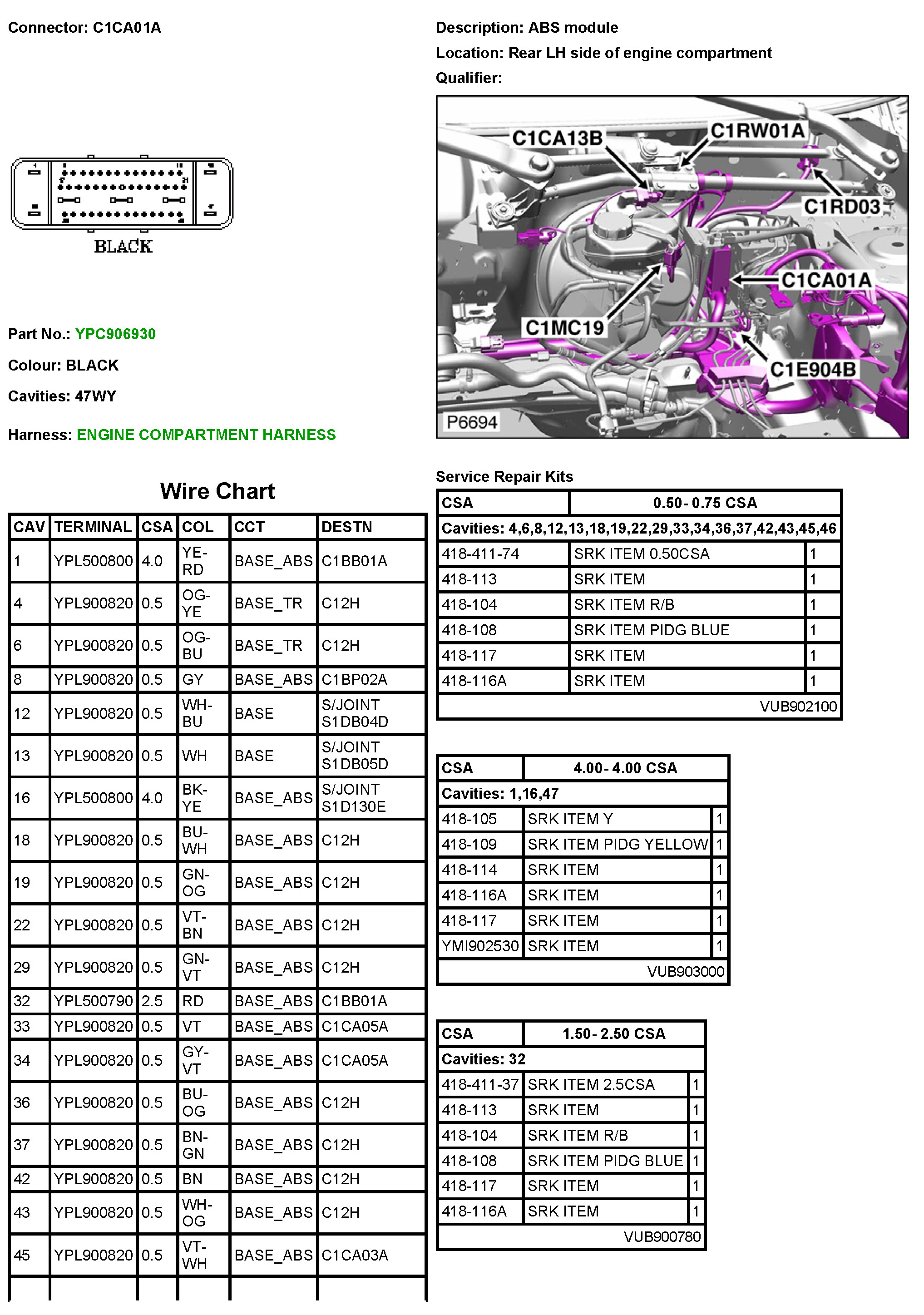

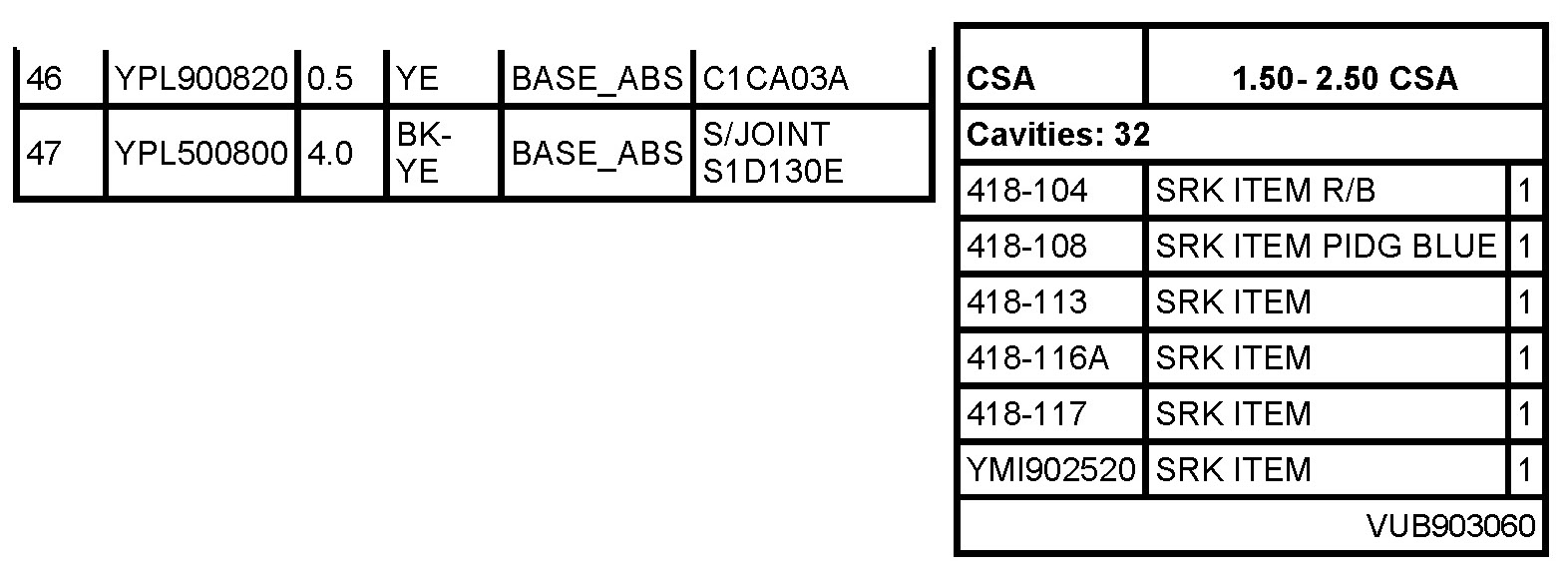

C1CA01A
