Home >> Land Rover >> 2012 >> LR2 (LF) L6-3.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Brakes and Traction Control >> Brake Fluid Level Sensor/Switch

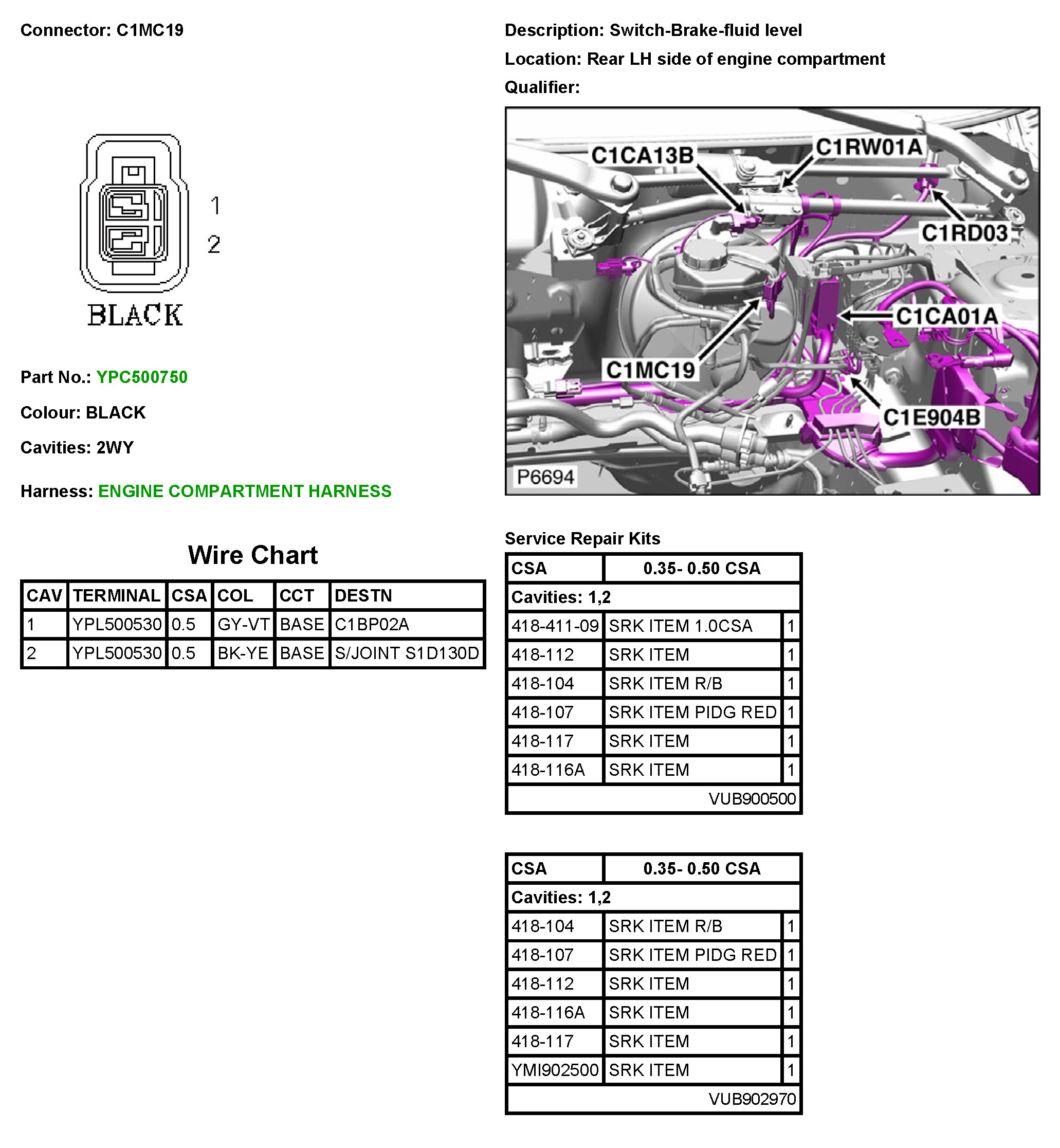

Brake Fluid Level Sensor/Switch



C1MC19
