Home >> Land Rover >> 2011 >> LR4 (LA) V8-5.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Control Module >> Locations >> C1855H

C1855H

C1855H

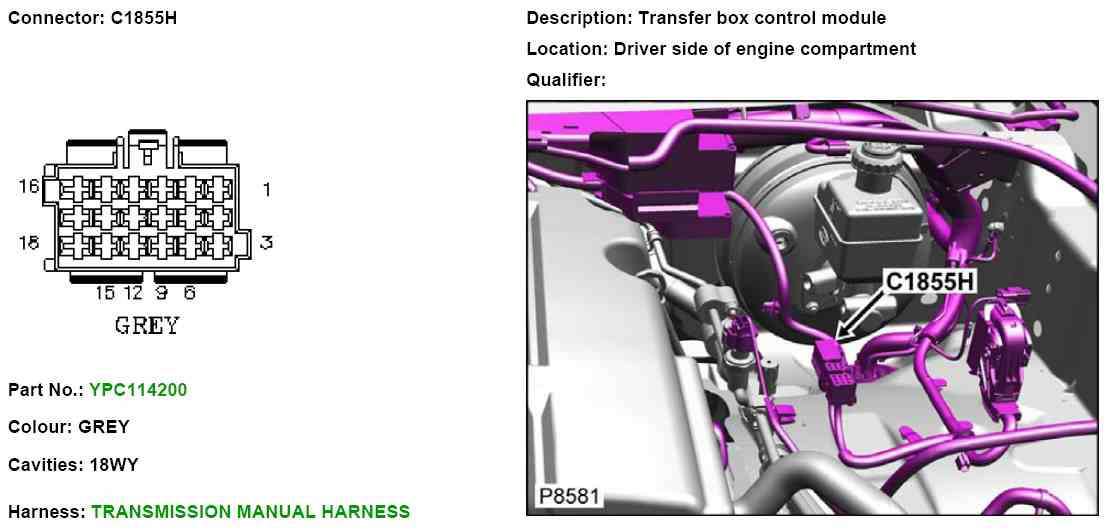

C1855H (Part 1):

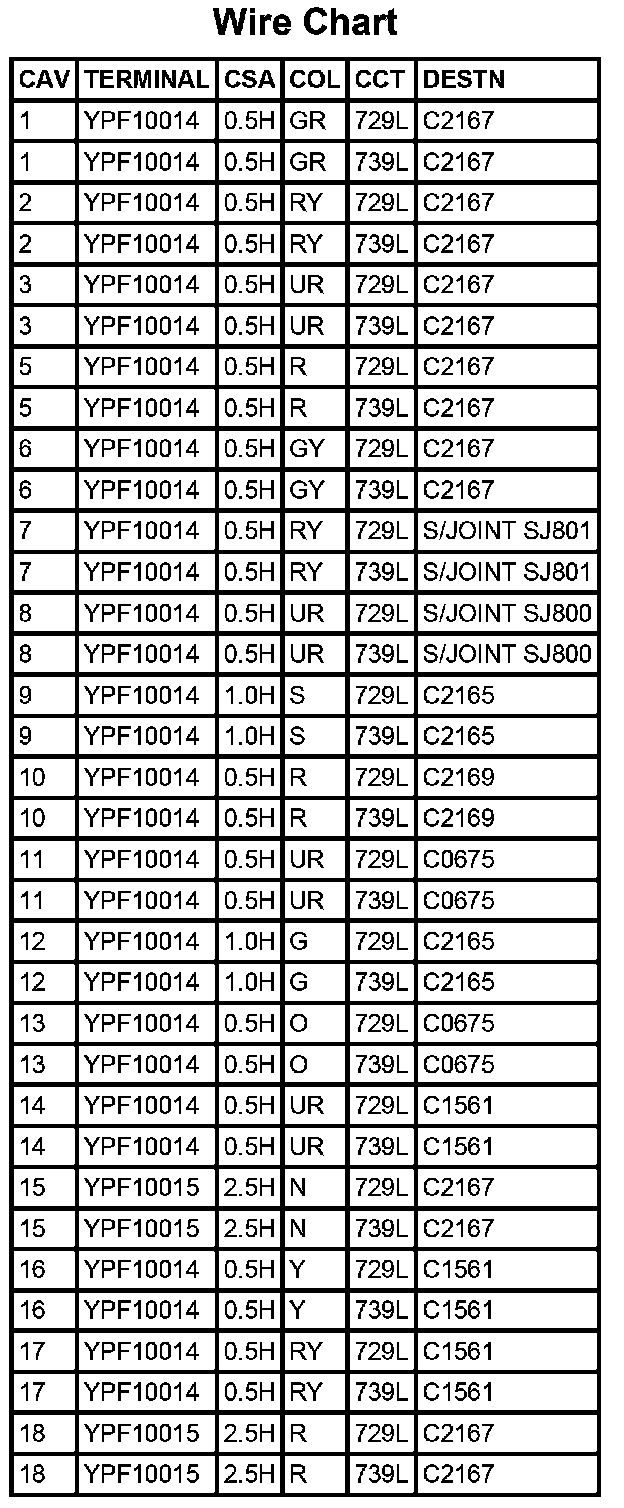

C1855H (Part 2):
