Land Rover
>>
2011
>>
LR4 (LA) V8-5.0L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Module HVAC
>>
Locations
>>
C3470
C3470
C3470

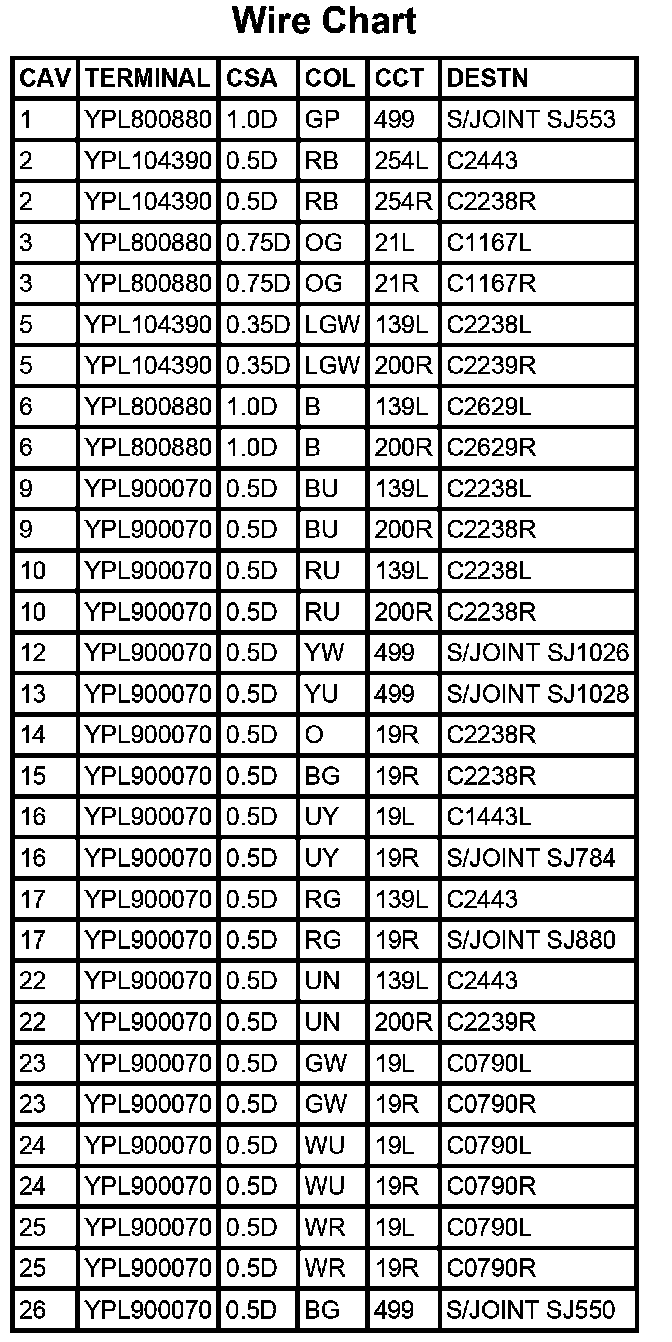

C3470 (Part 1):

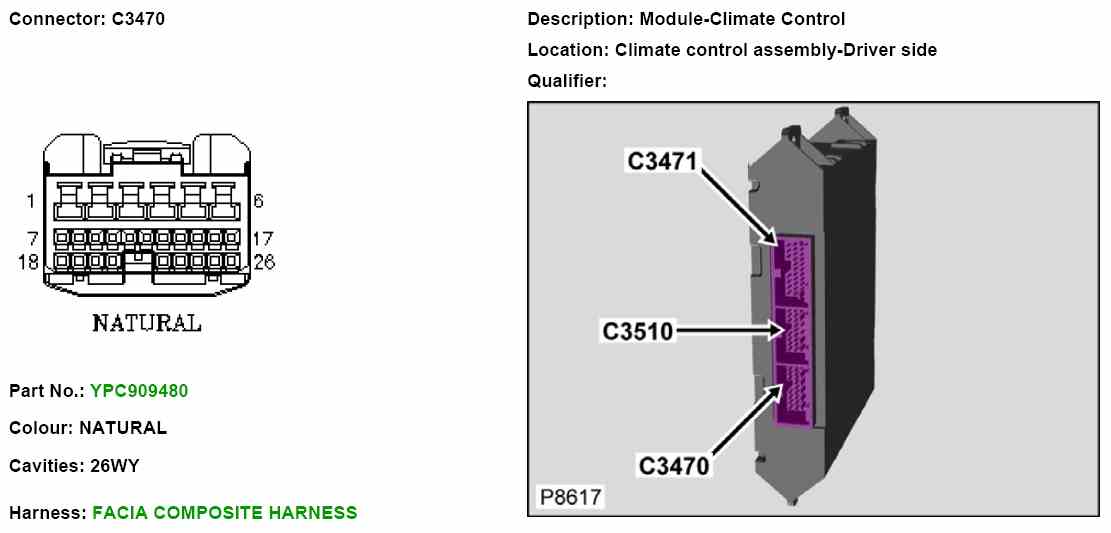

C3470 (Part 2):
