Flex Plate

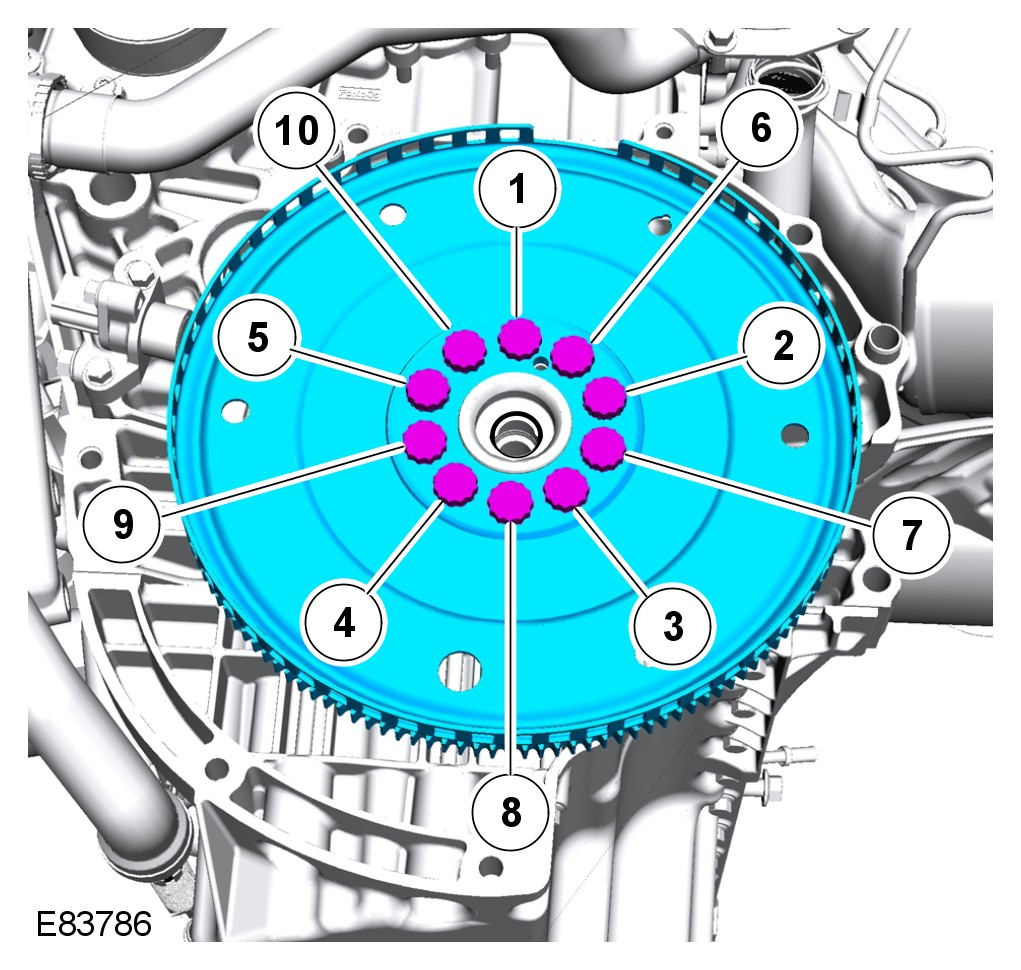

Install the flexplate and tighten the bolts as illustrated.
Step 1: 45 Nm

Step 2: 50 degree
