Land Rover
>>
2009
>>
Range Rover Sport (LS) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Signal Processing Module
Signal Processing Module
Module-IBOC Radio

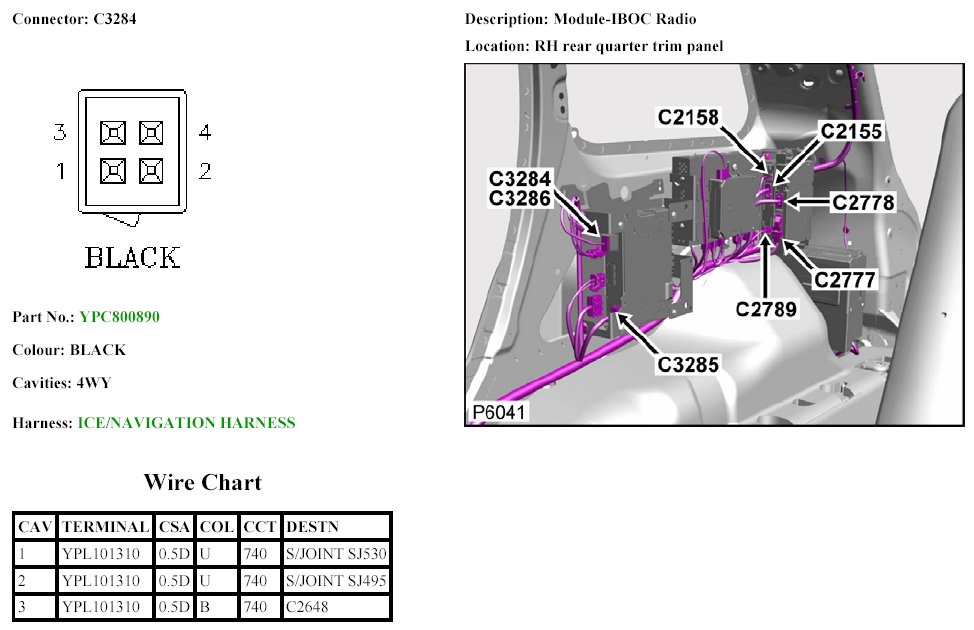

C3284:

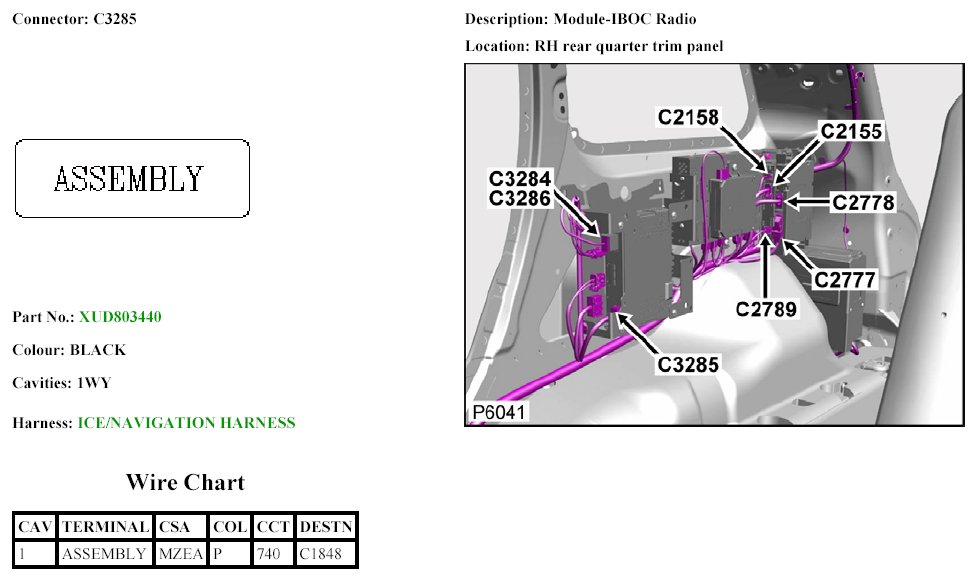

C3285:

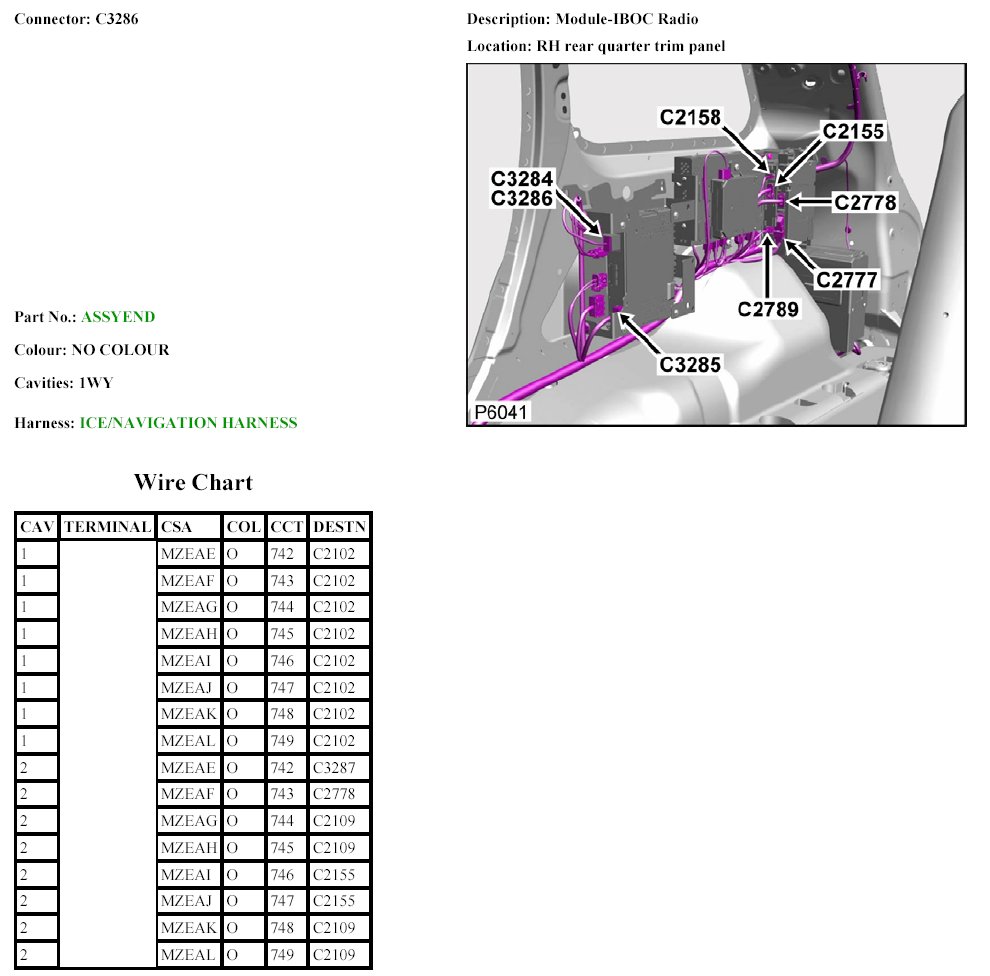

C3286:
