Oil Temperature Sensor/Switch, Engine
Oil Temperature Sensor/Switch, Engine

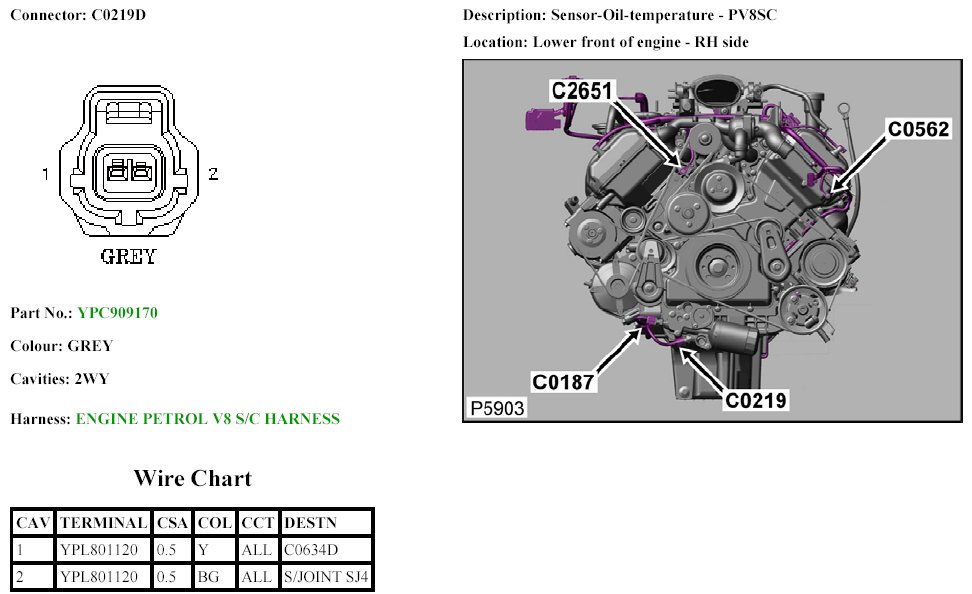

Sensor-Oil-Temperature-PV8SC
C0219D:
