Headlamp Alignment Control Module
Headlamp Alignment Control Module
AFS Control Module

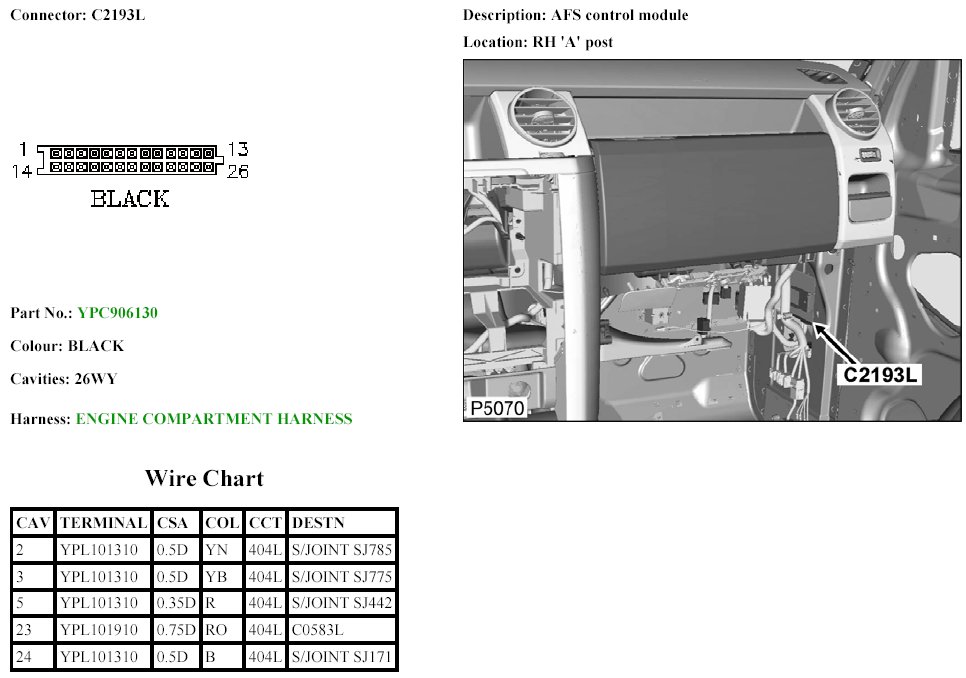

C2193L:

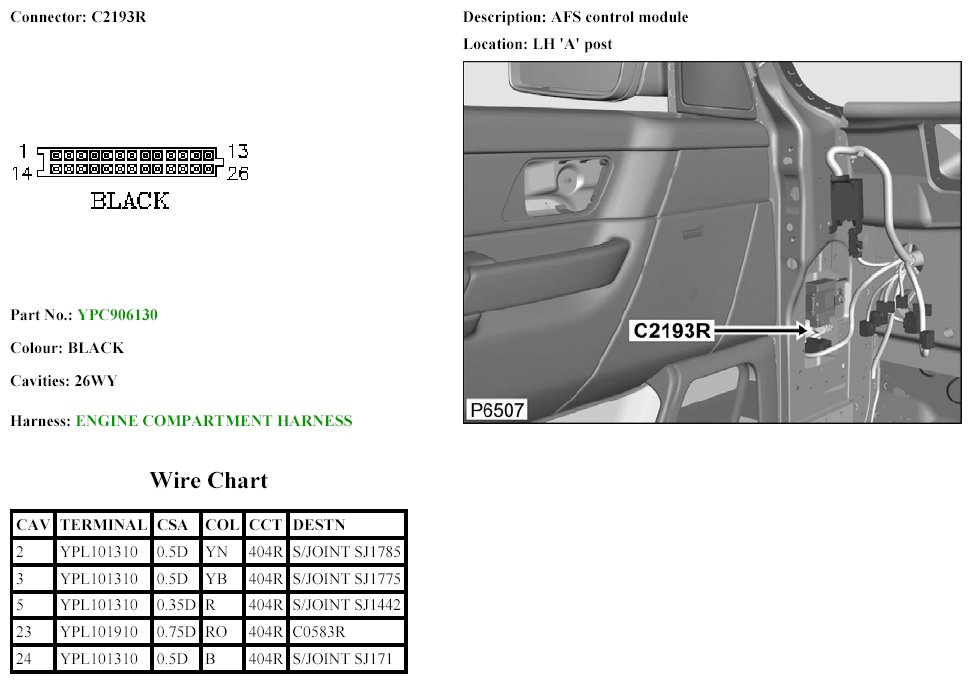

C2193R:
