Control Unit, Differential Lock
Control Unit, Differential Lock
Rear Differential Control Module

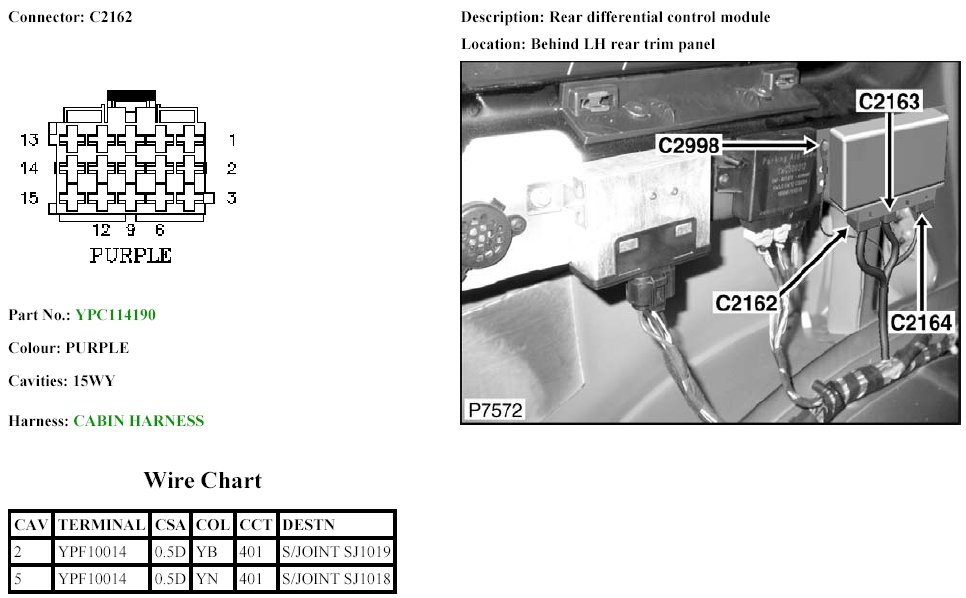

C2162:

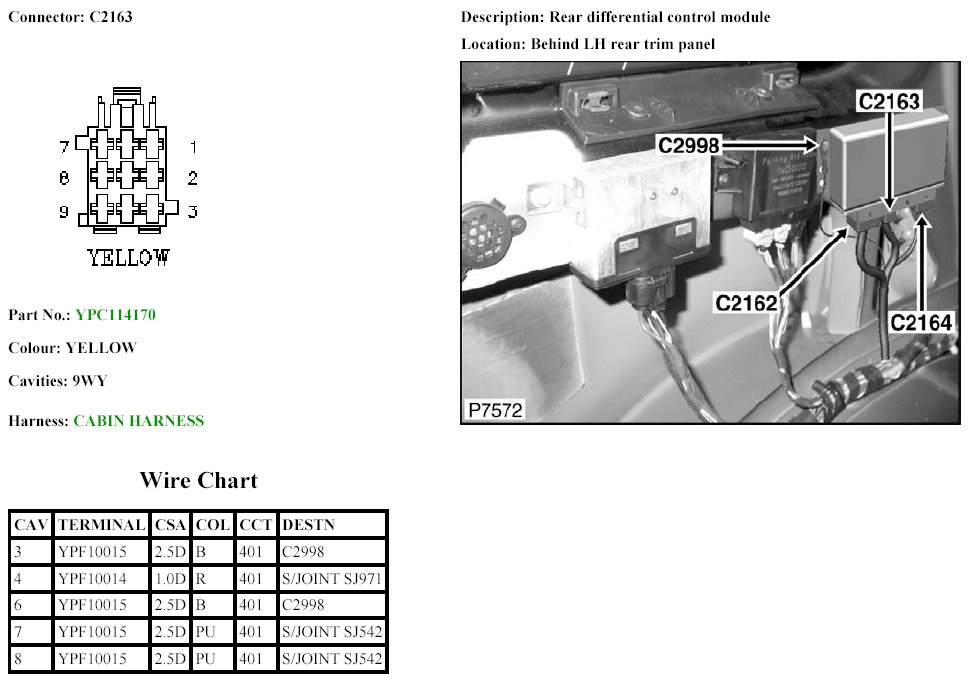

C2163:

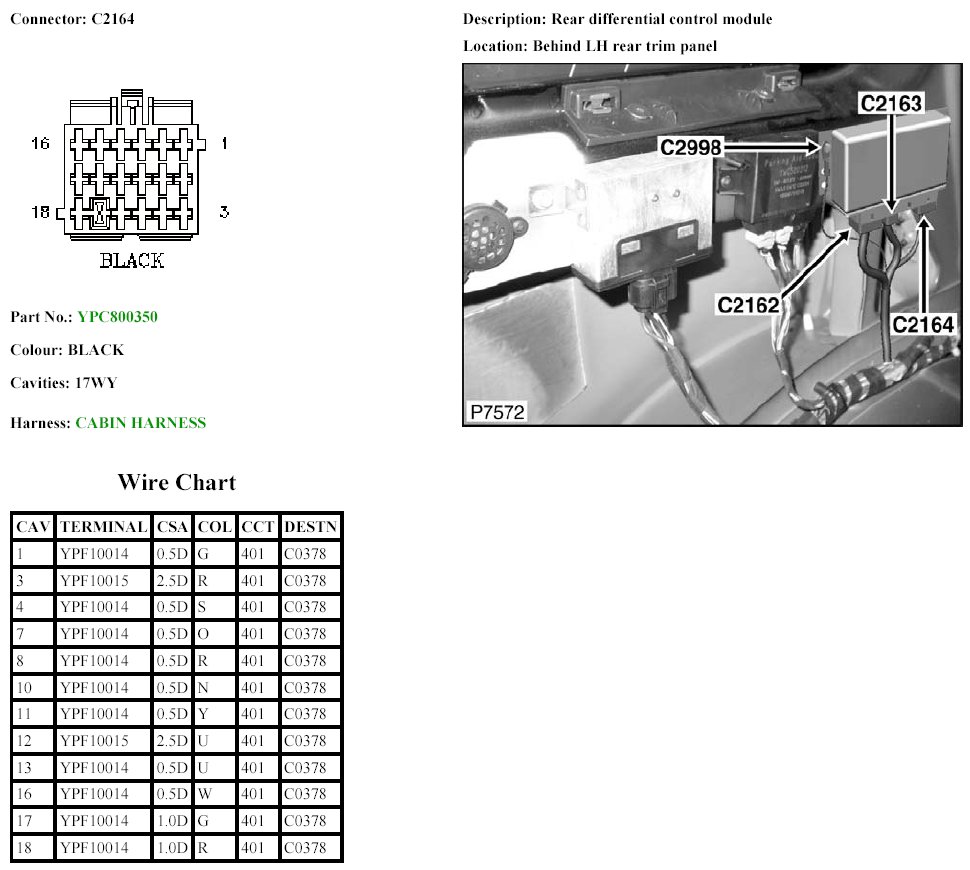

C2164:
