Home >> Land Rover >> 2009 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transfer Case >> Control Module, Transfer Case

Control Module, Transfer Case

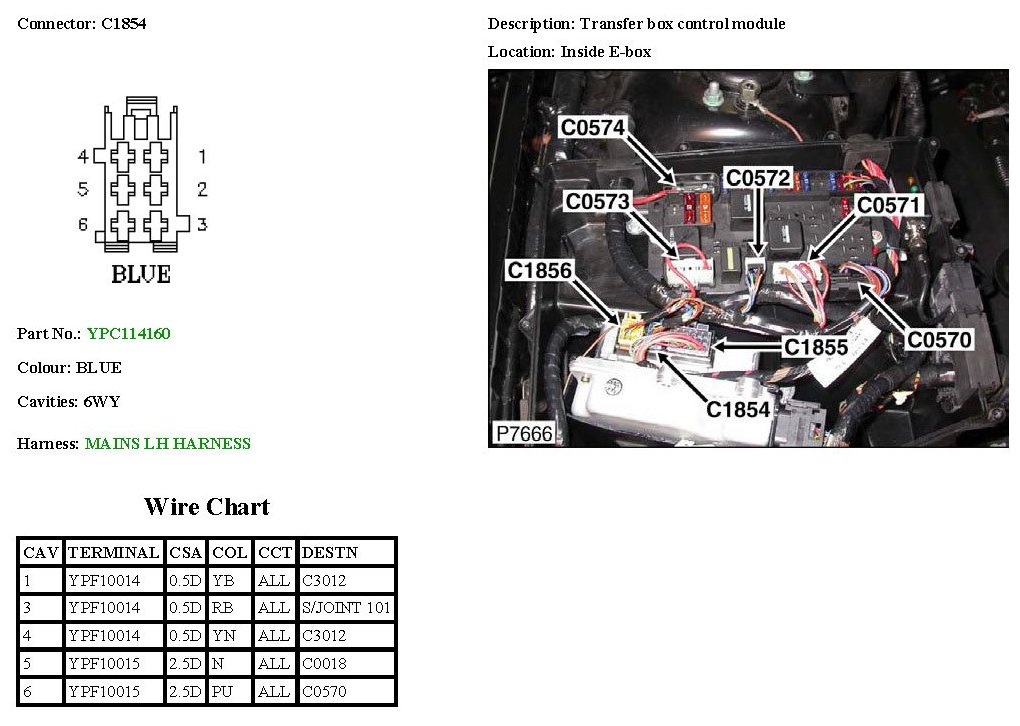

C1854:



C1855P:

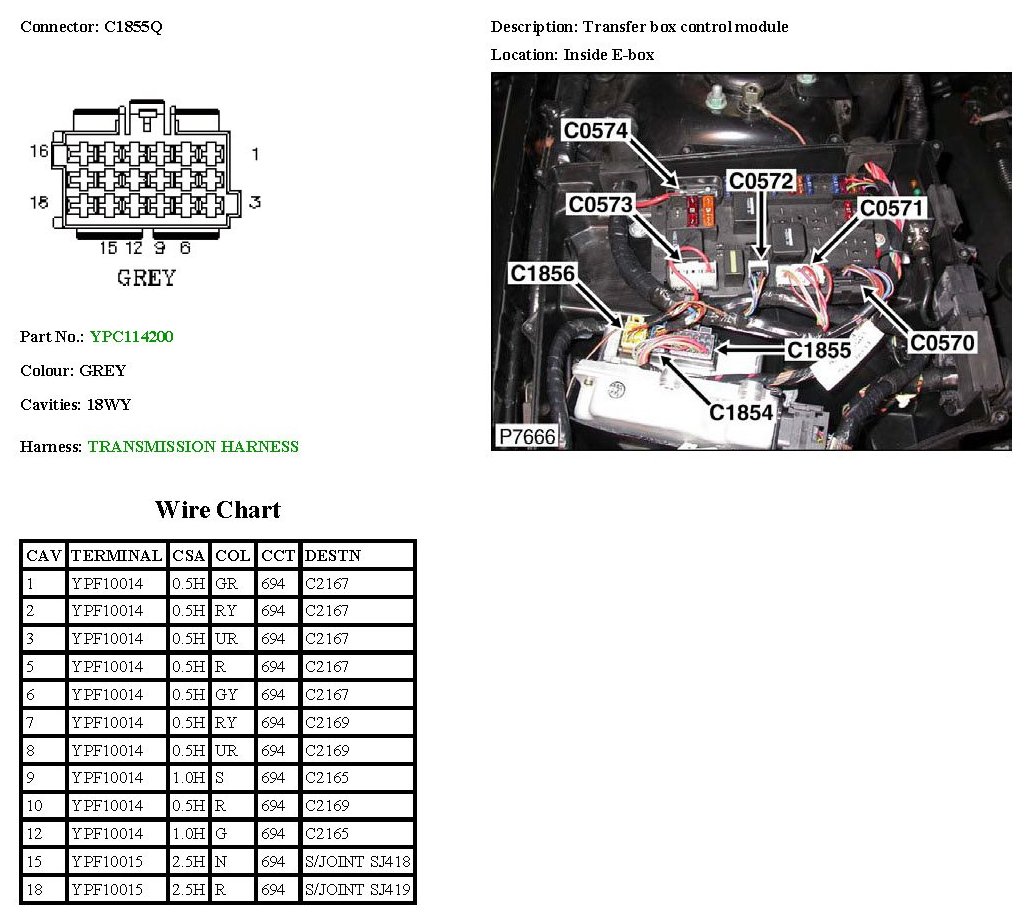

C1855Q:

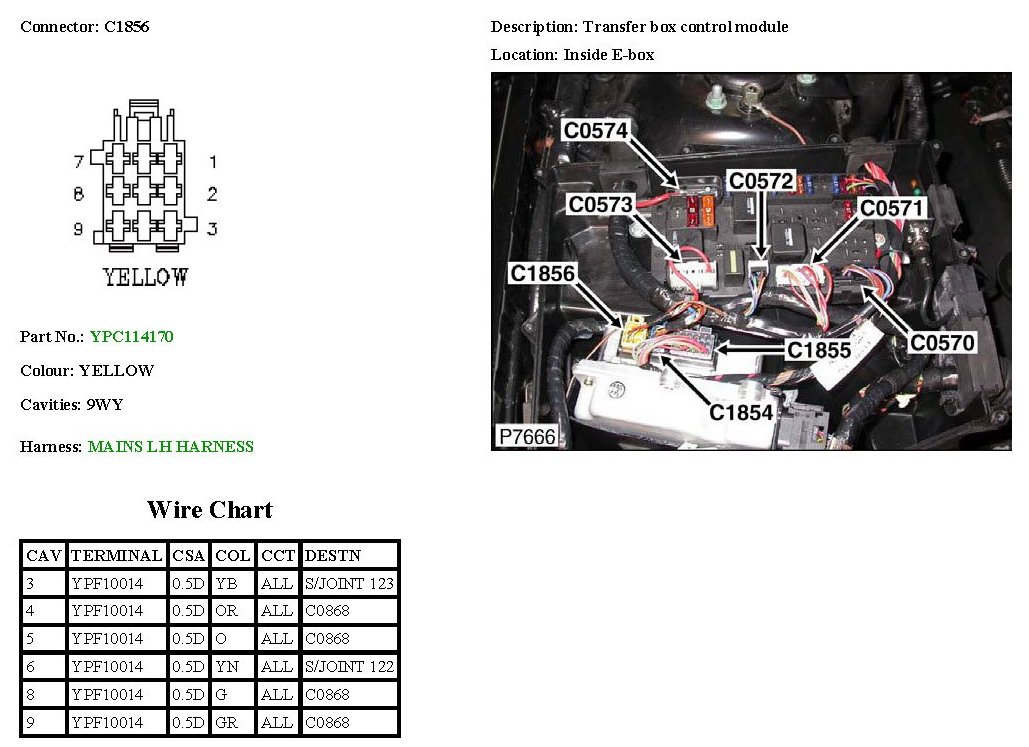

C1856:
