Range Rover (LM) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Suspension Control Module
Suspension Control Module

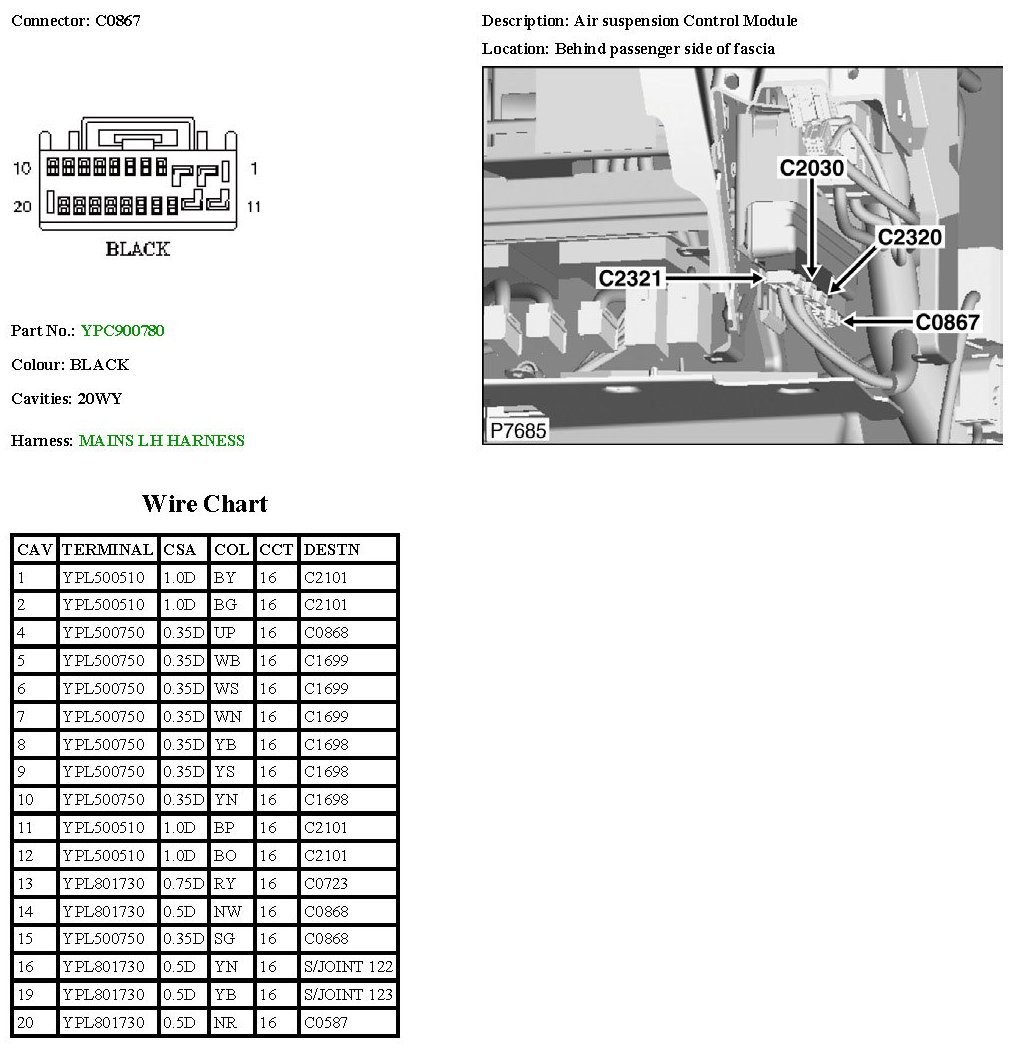

C0867:

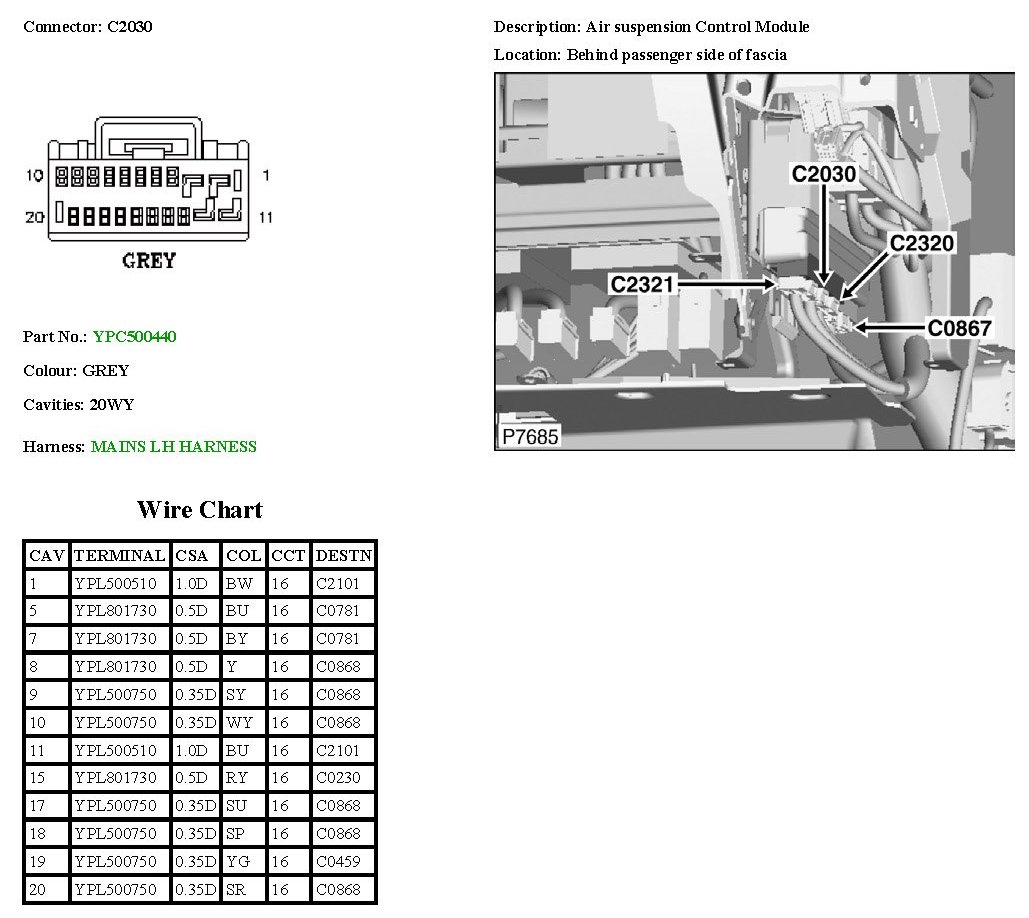

C2030:

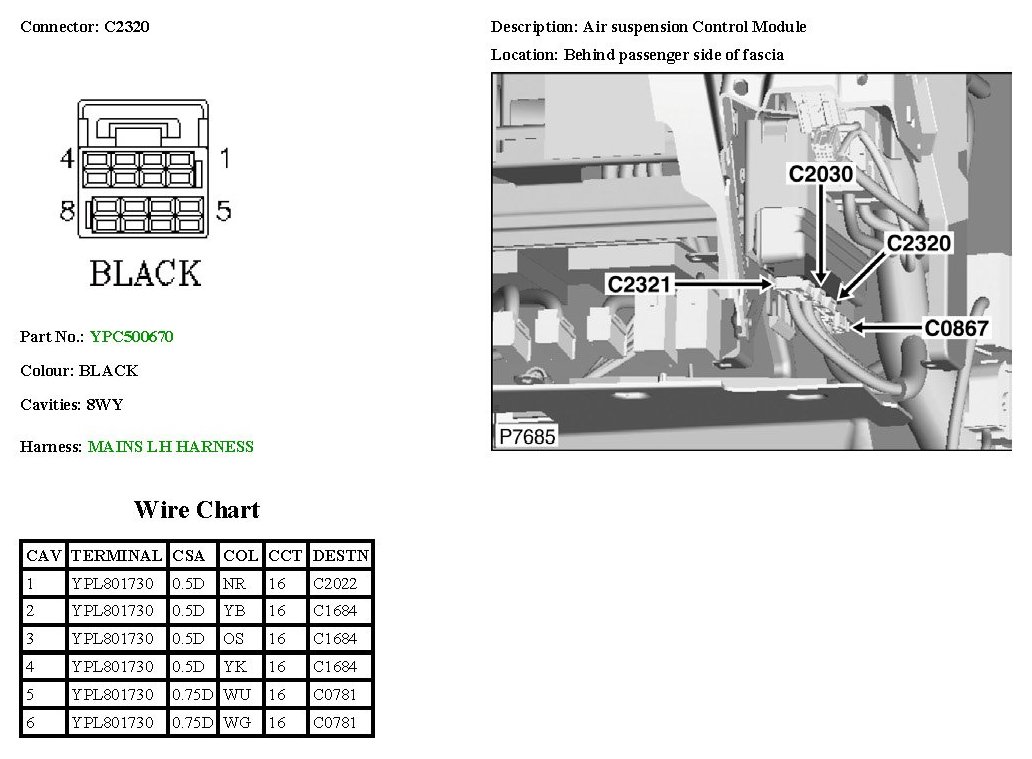

C2320:
C2321:
