Range Rover (LM) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Headlamp Control Module
Headlamp Control Module

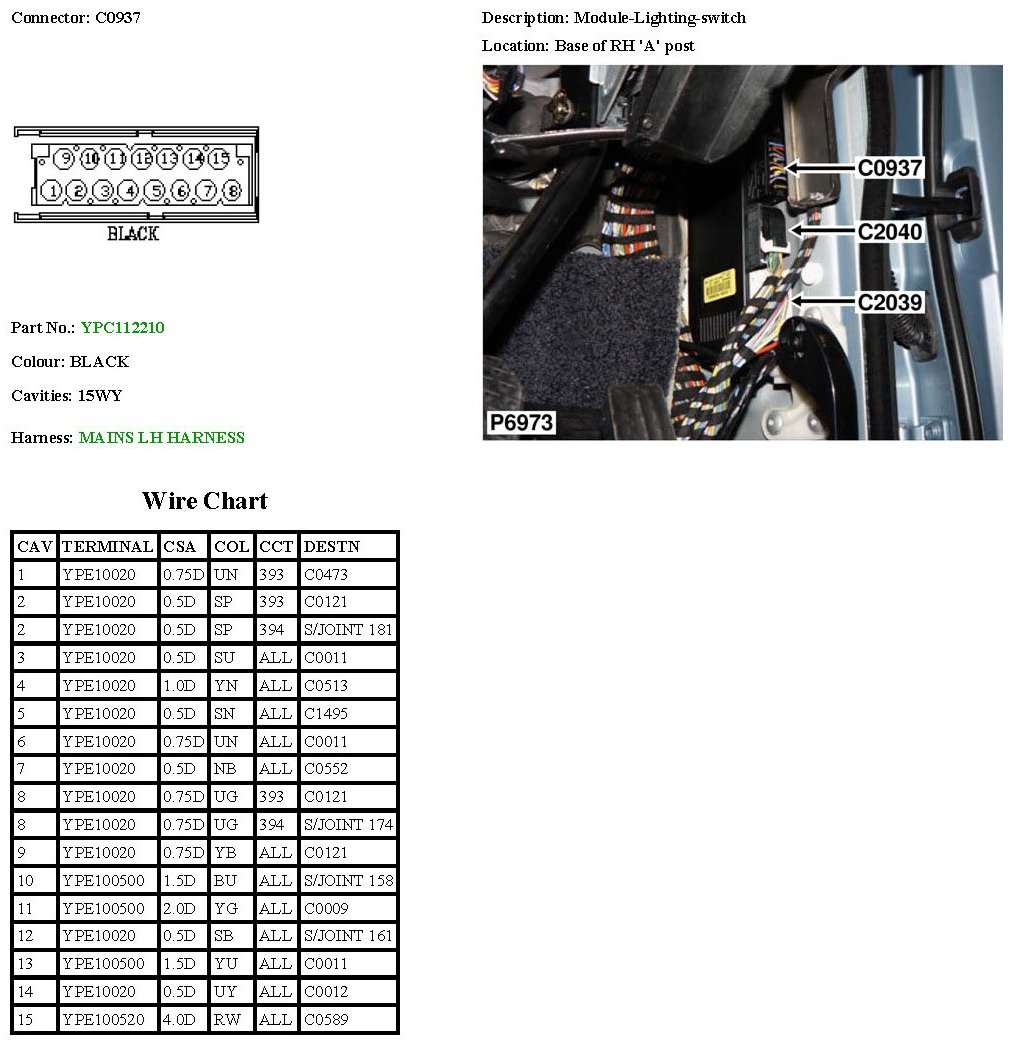

C0937:

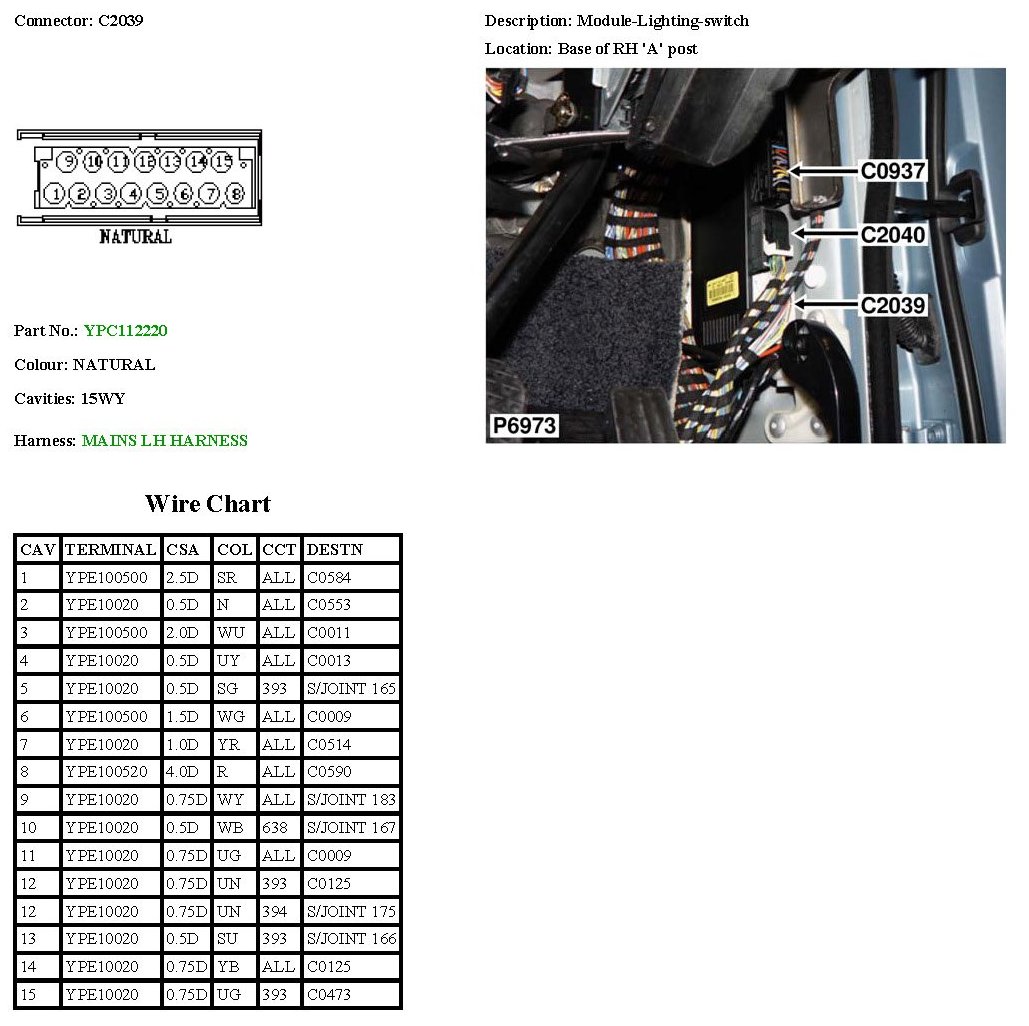

C2039:

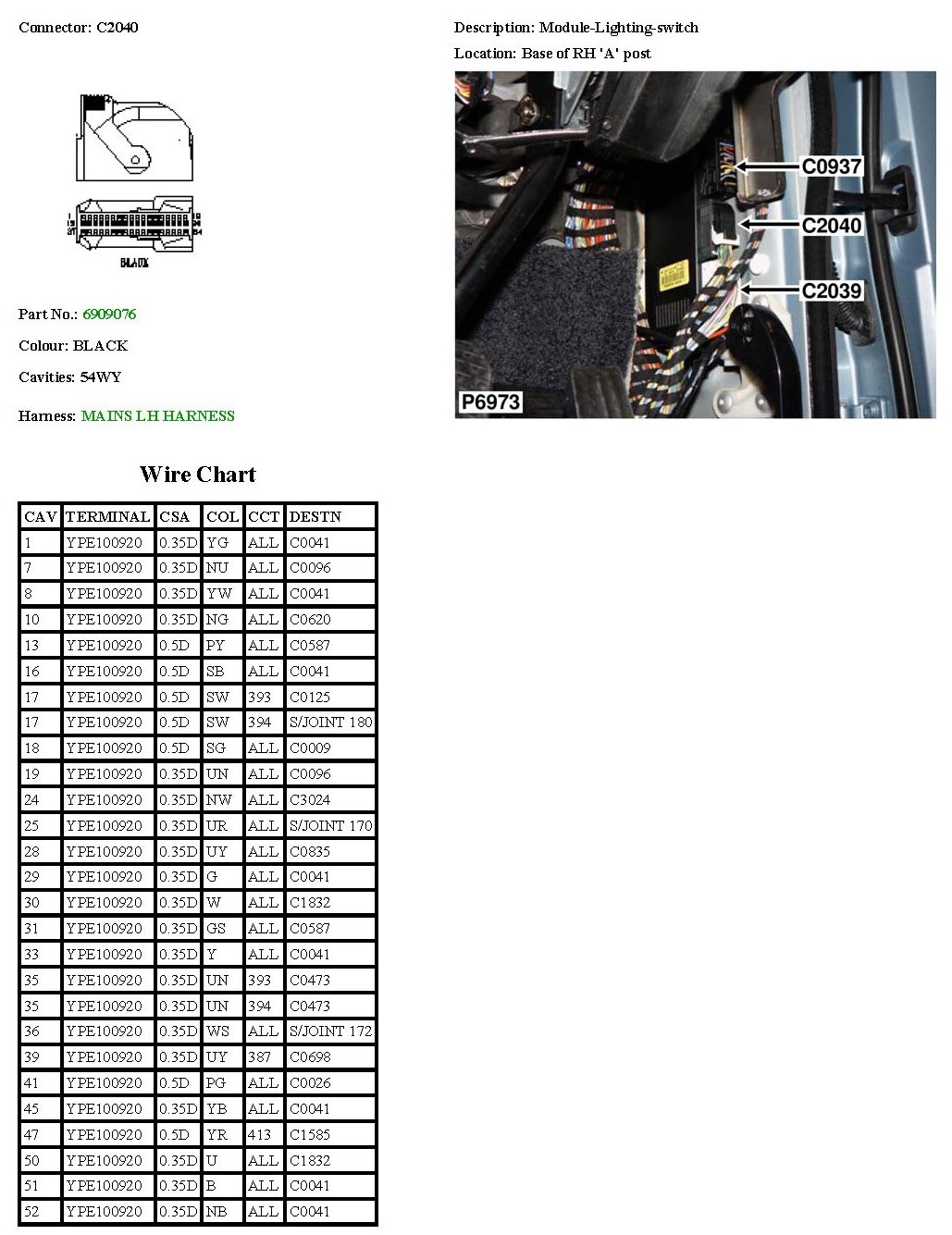

C2040:
