Home >> Land Rover >> 2009 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Engine Control-Module (ECM) - PV8

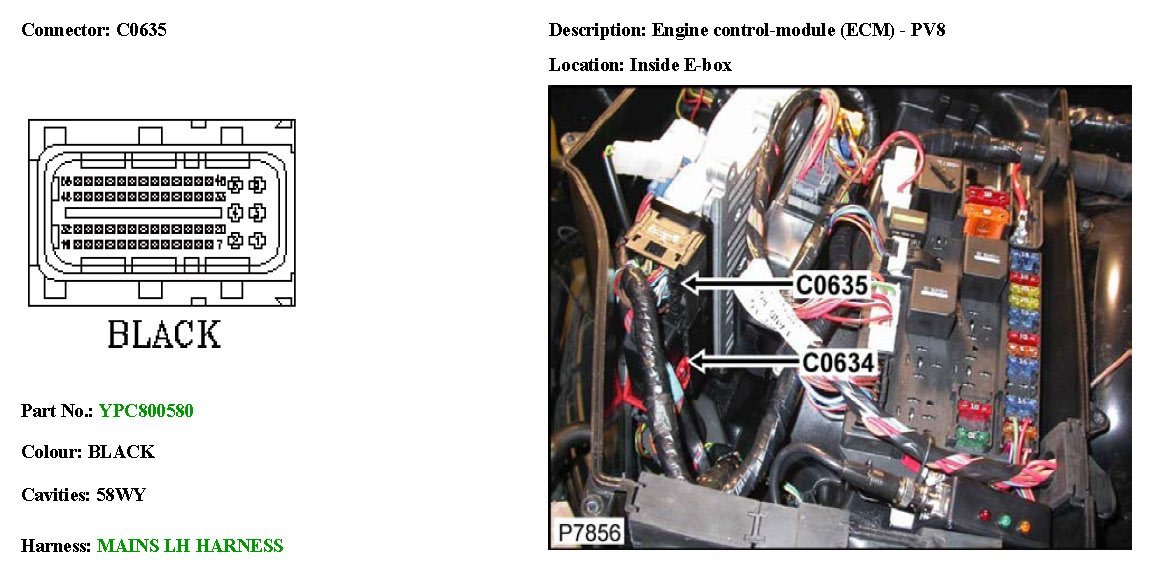

Engine Control-Module (ECM) - PV8

C0635 (Part 1):
