Impact Sensor
>>
Sensor-Air Bag-Side-Rear-RH
Sensor-Air Bag-Side-Rear-RH
Sensor-Air Bag-Side-Rear-RH

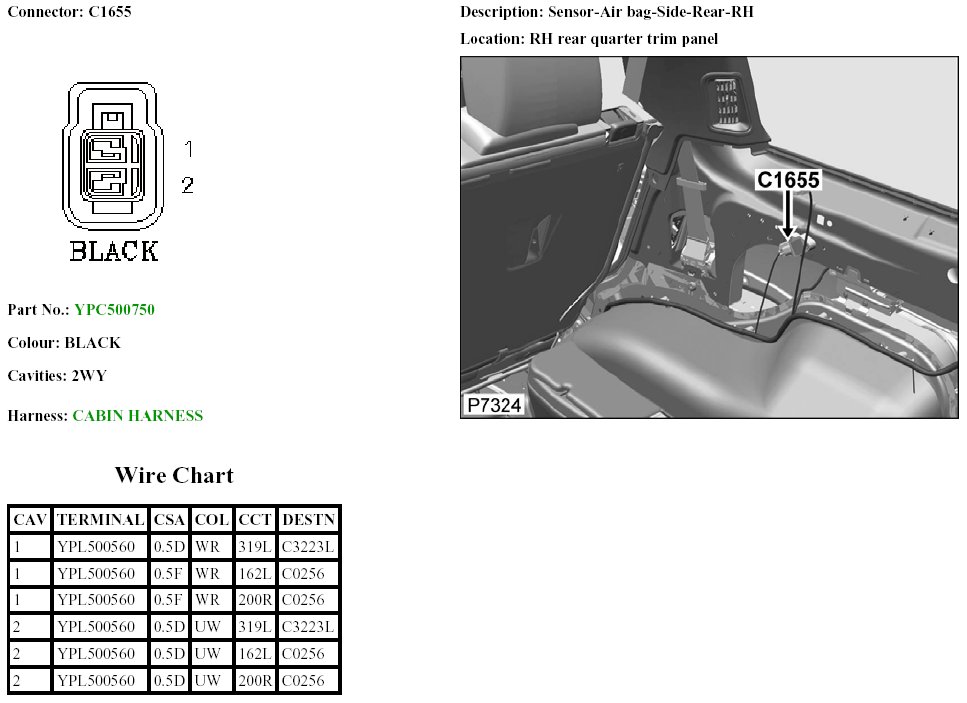

C1655:

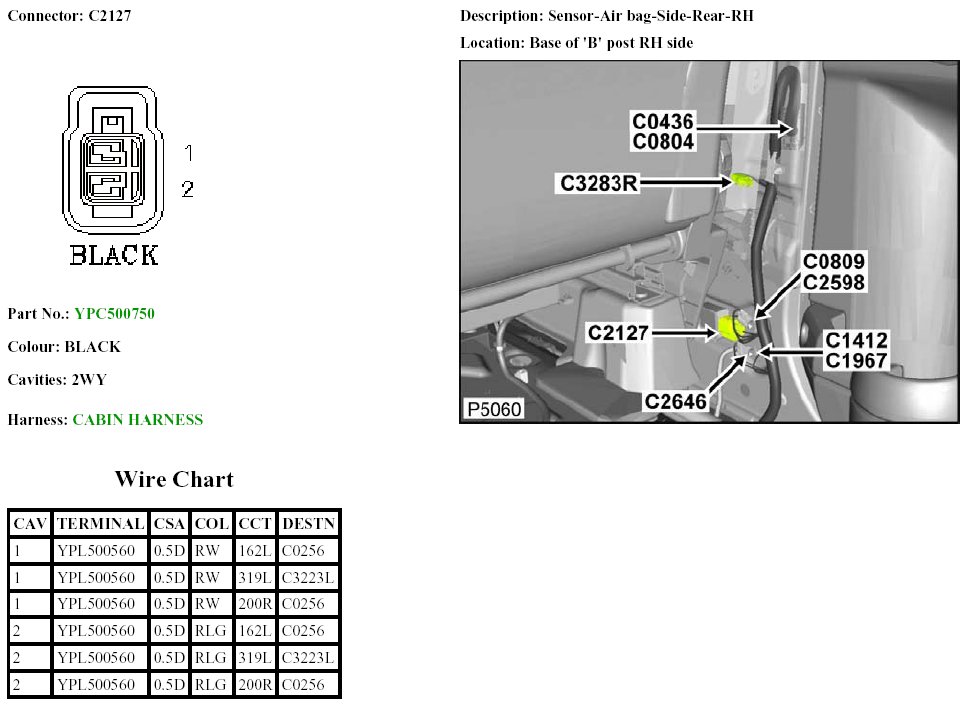

C2127:
