Crankshaft Position Sensor: Service and Repair

Crankshaft Position (CKP) Sensor

Service Repair No - 18.30.12

Removal

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

1. Raise and support the vehicle.
2. Remove the engine undershield.

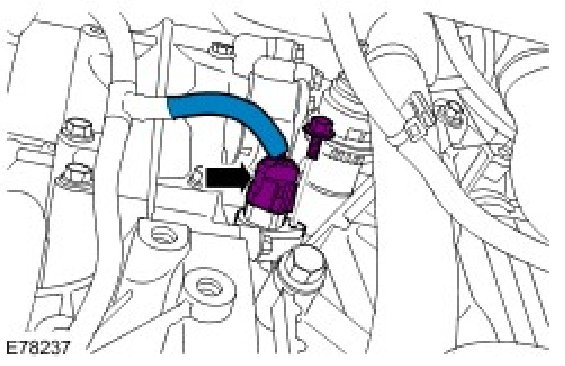

3. Torque: 10 Nm





Installation
1. To install, reverse the removal procedure.
