Home >> Land Rover >> 2009 >> LR2 (LF) L6-3.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Absolute Pressure Sensor >> Locations >> Sensor-Manifold Absolute-Pressure (MAP)

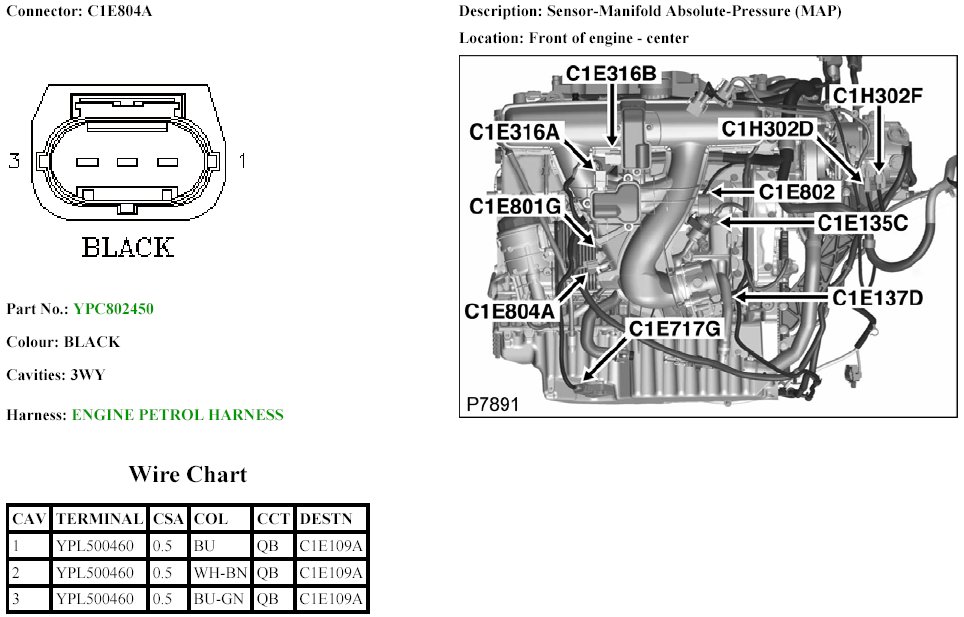

Sensor-Manifold Absolute-Pressure (MAP)

C1E804A:
