Connector Views
>>
Impact Sensor
>>

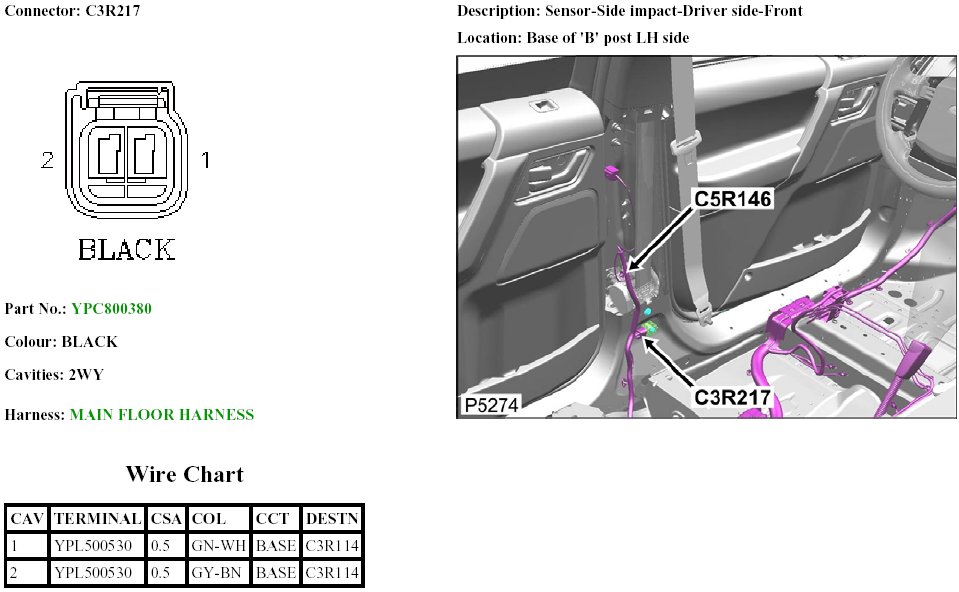

Sensor-Side Impact-Driver Side-Front
Sensor-Side Impact-Driver Side-Front
C3R217:
