Land Rover
>>
2009
>>
LR2 (LF) L6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

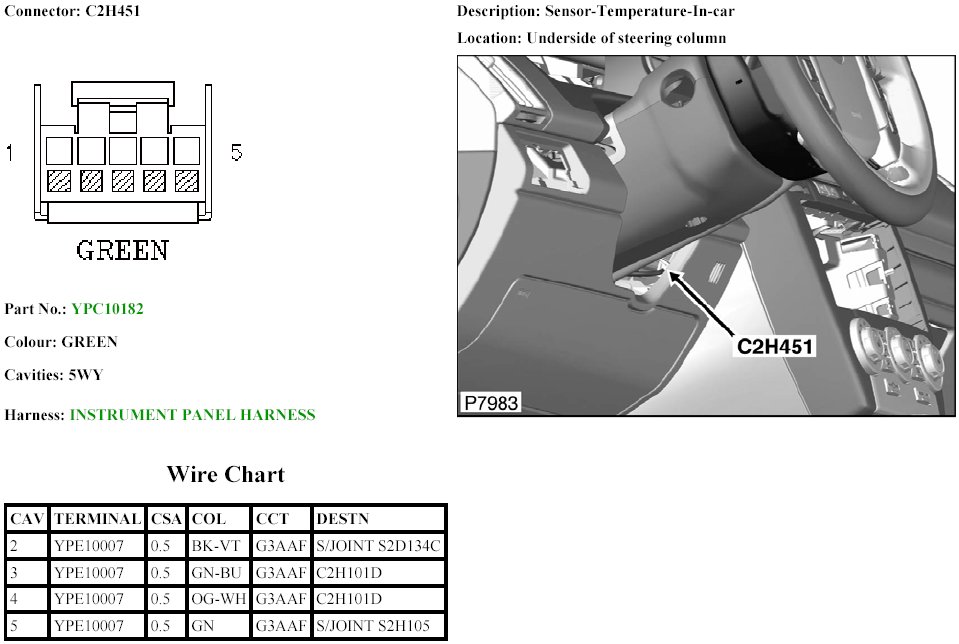

Cabin Temperature Sensor / Switch
Cabin Temperature Sensor / Switch
C2H451:
