Speed Control Switch



Speed Control Switch

Removal
1. Disconnect the battery ground cable.
2. Make the SRS system safe.
3. Remove the driver air bag module.

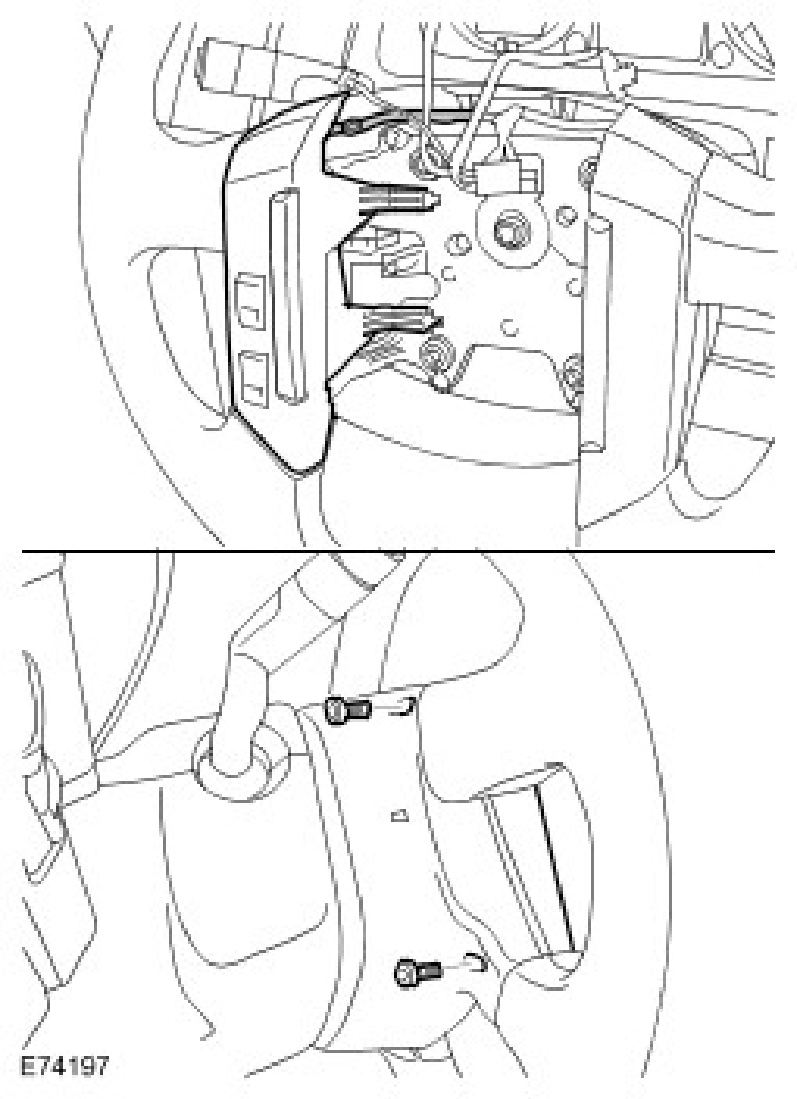

4. Remove the 2 Torx screws.
Disconnect the electrical connector.





Installation
1. To install, reverse the removal procedure.
