Home >> Land Rover >> 2008 >> LR2 (LF) L6-3.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Ride Height Sensor, Suspension Control >> Sensor Height-Front

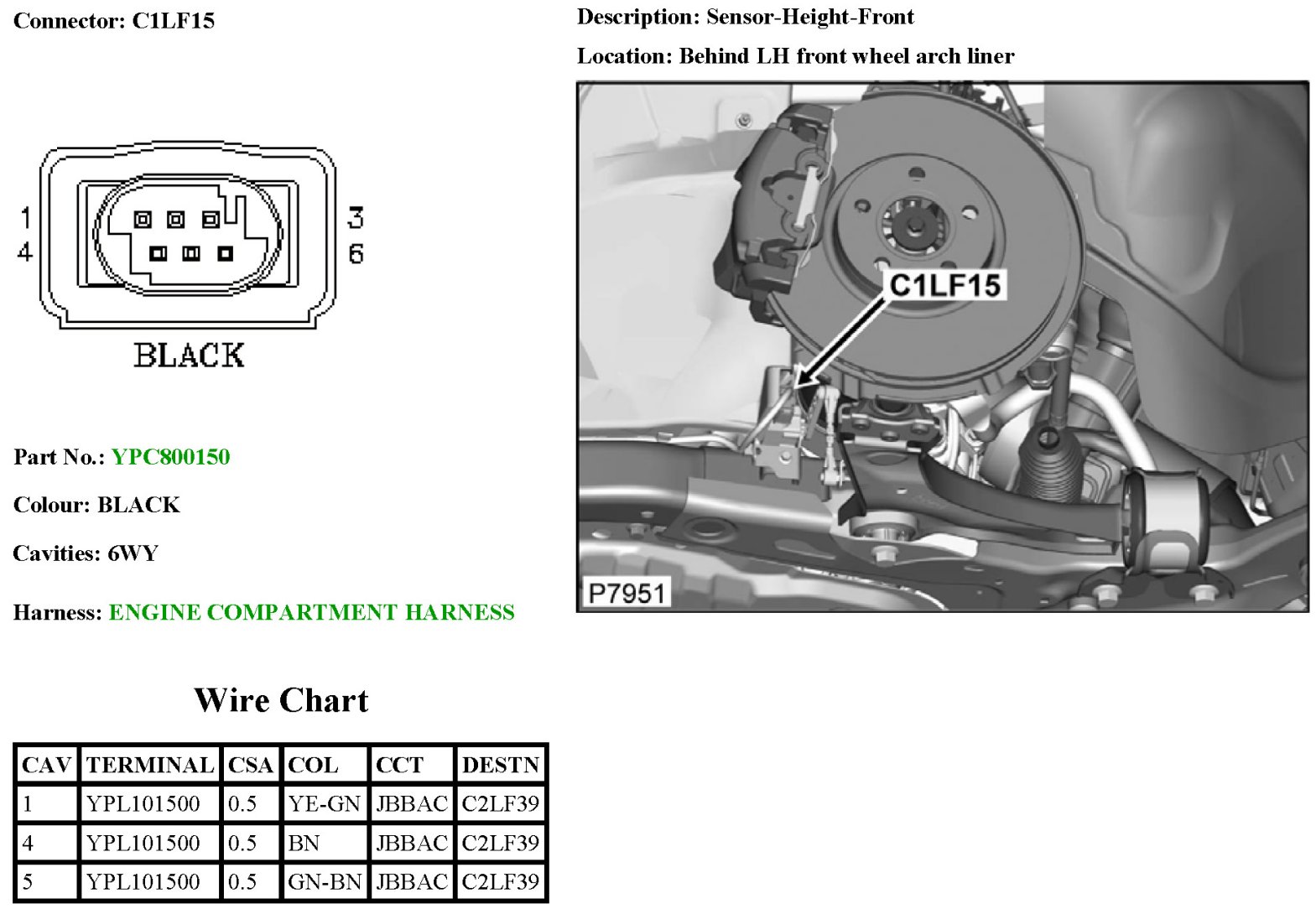

Sensor Height-Front

C1LF15:
