Home >> Land Rover >> 2007 >> Range Rover Sport (LS) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Distribution Relay

Power Distribution Relay

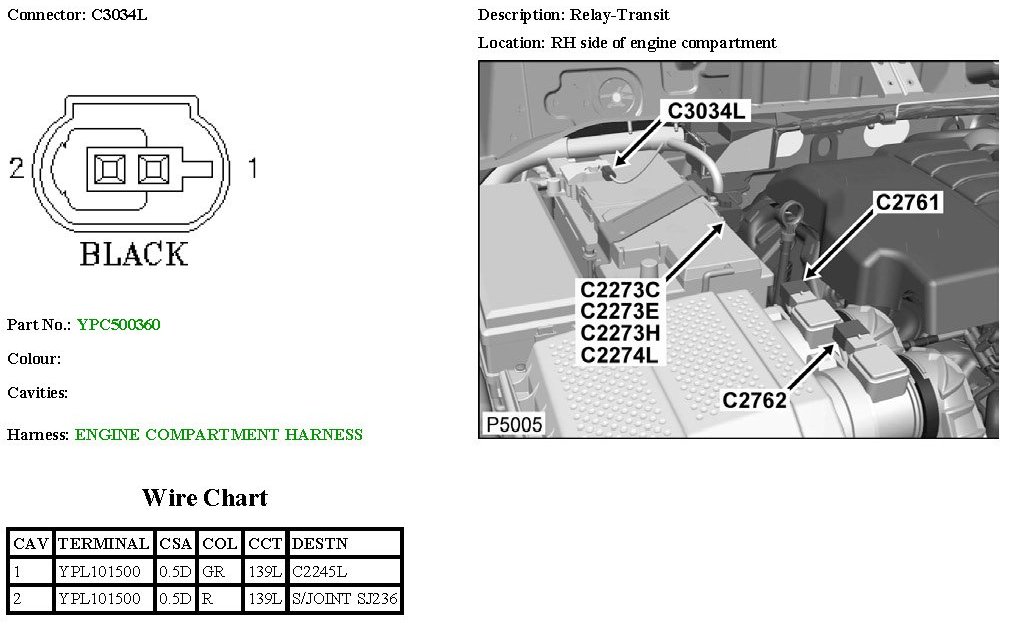

C3034L:

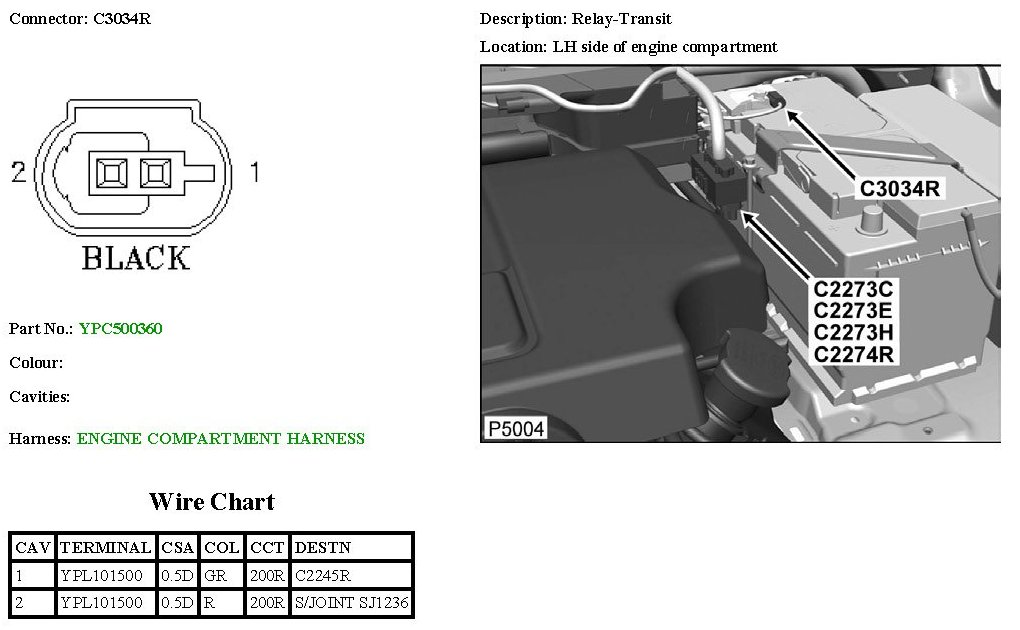

C3034R:
